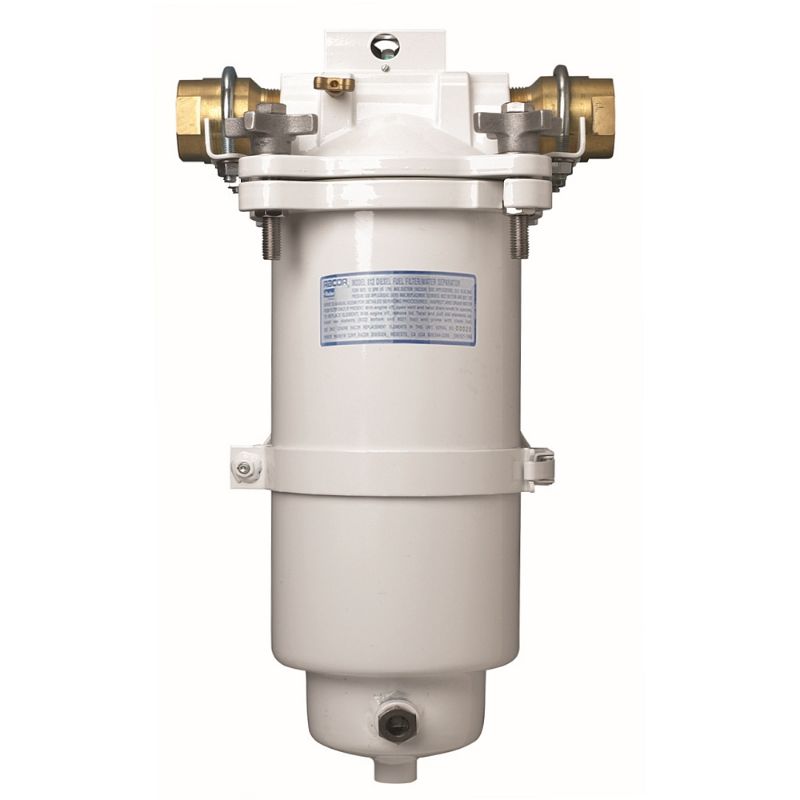

Parker FBO-14-MA - Fuel Filtration Assemblies – Racor FBO Series

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FBO-14-MA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Indicator Type	Delta P Indicator Included	Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor
Micron Rating	5 MICRON	Heat Type	N/A
Weight	17 lb	Application	Fuel Transfer/Engine Filtration
Pressure Rating	10.3 bar at 115°C	Mounting Type	Bracket Kit Included
Additional Options	Water Sight Glass Included	Port Size	NPT (2x)
Width	9.5 inch	Materials of Construction	Aluminum head, Steel Bowl
Height	24 inch	Operating Temperature	-40 to 124 °C
Brand	Racor	Compatible Element	FBO 60338
Division	Engine Mobile Original Equipment Division	Drain Option	Drain Valve Included
Product Series	FBO	Valve Type	None
For Fluid Type	Diesel/B20/Gasoline	Pre-Installed Optional Accessories	DP Indicator, Water Sight Glass, Bracket/Fittings
Flow Rate (lph)	Up to 115 in Diesel, 285 Gasoline	Flow Rate (gpm)	Up to 30 in Diesel, 75 Gasoline
Use Case	Marine	Filter Element	25 Micron Coalescing Filter
Number of Housings	One Head and Housing
