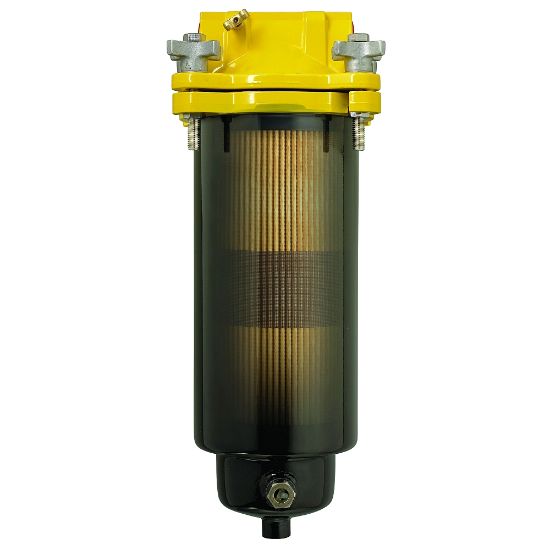

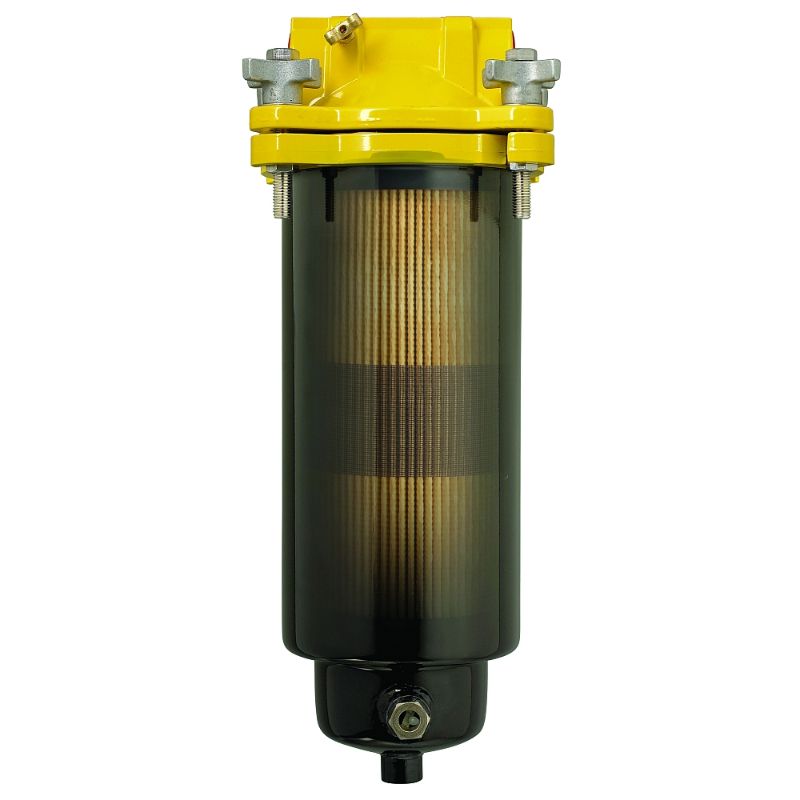

Parker FBO-14 - Fuel Filtration Assemblies – Racor FBO Series

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FBO-14

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	NPT (2x)
Materials of Construction	Aluminum head, Steel Bowl	Width	21.8 cm
Brand	Racor	Indicator Type	Order Parts#<br/>72694 0-15 psid<br/>72783 0-30 psid
Division	Engine Mobile Original Equipment Division	Operating Temperature	-40 to 124 °C
Drain Option	Drain Valve Included	Product Series	FBO
Additional Options	Water Sight Glass Part #72710	Height	23 inch
Heat Type	Option: Part# FBO-HTR-KIT	For Fluid Type	Diesel/B20/Gasoline
Mounting Type	Optional Bracket Kit Part# 73084	Valve Type	None
Micron Rating	10 MICRON	Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor
Pressure Rating	10.3 bar at 115°C	Weight	17 lb
Application	Fuel Transfer/Engine Filtration	Compatible Element	FBO SERIES REPLACEMENT ELEMENTS
Flow Rate (gpm)	Up to 30 in Diesel, 75 Gasoline	Filter Element	Filter Element Ordered Separately
Pre-Installed Optional Accessories	Base Model	Number of Housings	One Head and Housing
Use Case	Industrial	Flow Rate (lph)	Up to 115 in Diesel, 285 Gasoline
