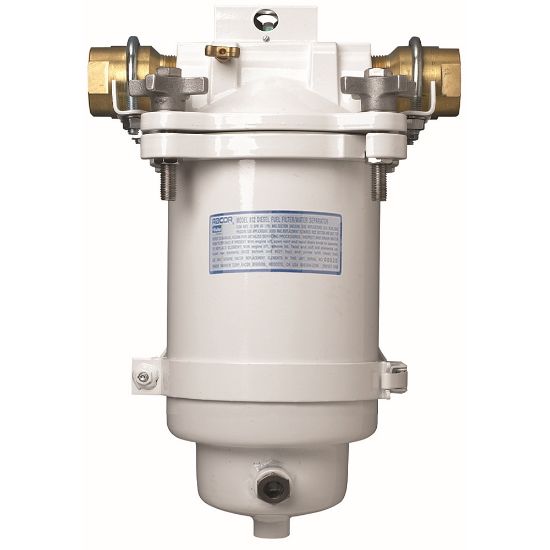

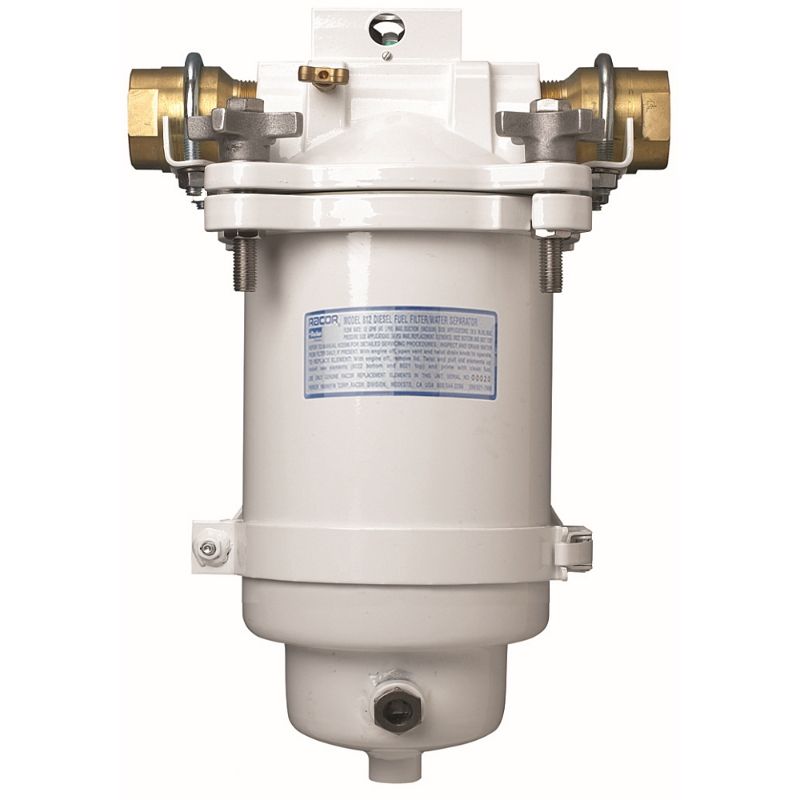

Parker FBO-10-MA - Fuel Filtration Assemblies – Racor FBO Series

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FBO-10-MA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Indicator Type	Delta P Indicator Included
Weight	6.8 kg	Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor
Height	20 inch	Heat Type	N/A
Width	24 cm	Product Series	Cartridge FF/WS
Mounting Type	Bracket Kit Included	Application	Fuel Transfer/Engine Filtration
Pressure Rating	10.3 bar at 115°C	Additional Options	Water Sight Glass Included
Drain Option	Drain Valve Included	Materials of Construction	Aluminum head, Steel Bowl
Division	Engine Mobile Original Equipment Division	Operating Temperature	-40 to 124 °C
Micron Rating	25 MICRON available	Brand	Racor
Valve Type	None	For Fluid Type	Diesel/B20/Gasoline
Port Size	1-1/2 inch (2x)	Compatible Element	FBO 60329
Pre-Installed Optional Accessories	DP Indicator, Water Sight Glass, Bracket/Fittings	Flow Rate (gpm)	Up to 25 in Diesel, 55 Gasoline
Use Case	Marine	Flow Rate (lph)	Up to 95 in Diesel, 200 Gasoline
Filter Element	25 Micron Coalescing Filter	Number of Housings	One Head and Housing
