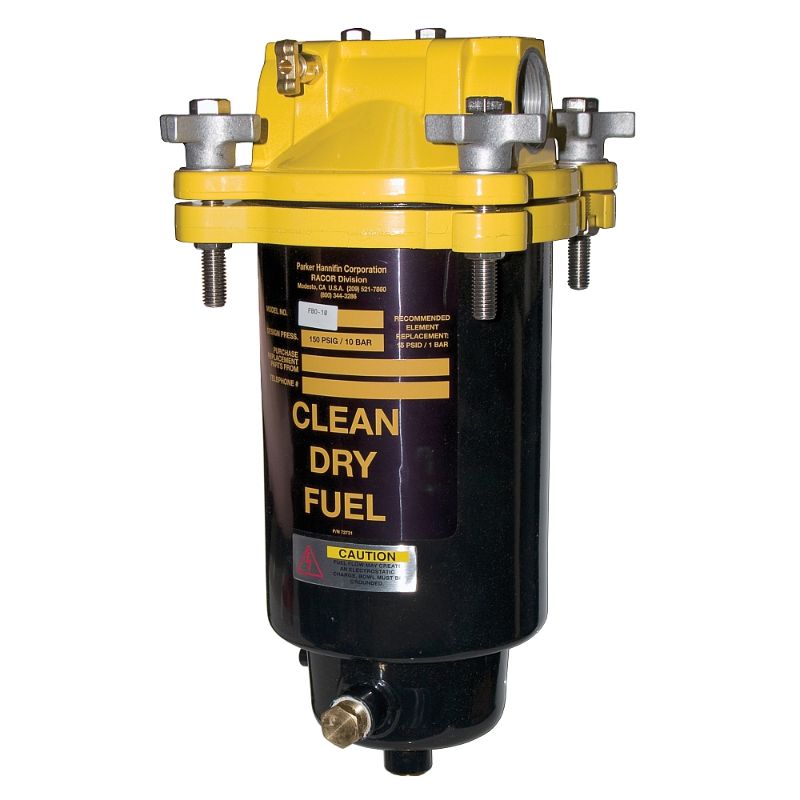

Parker FBO-10 - Fuel Filtration Assemblies – Racor FBO Series

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FBO-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	6.8 kg	Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor
Application	Fuel Transfer/Engine Filtration	Compatible Element	FBO SERIES REPLACEMENT ELEMENTS
Materials of Construction	Aluminum head, Steel Bowl	Width	21.8 cm
Port Size	NPT (2x)	Division	Engine Mobile Original Equipment Division
Drain Option	Drain Valve Included	Operating Temperature	-40 to 124 °C
Brand	Racor	Pressure Rating	150 psi at 240°F
Indicator Type	Order Parts#<br/>72694 0-15 psid<br/>72783 0-30 psid	Product Series	FBO
Height	47.7 cm	Additional Options	Water Sight Glass Part #72710
Micron Rating	25 MICRON available	For Fluid Type	Diesel/B20/Gasoline
Valve Type	None	Heat Type	Option: Part# FBO-HTR-KIT
Mounting Type	Optional Bracket Kit Part# 73084	Use Case	Industrial
Flow Rate (gpm)	Up to 25 in Diesel, 55 Gasoline	Filter Element	Filter Element Ordered Separately
Flow Rate (lph)	Up to 95 in Diesel, 200 Gasoline	Pre-Installed Optional Accessories	Base Model
Number of Housings	One Head and Housing

Product resources

Literature and Reference Materials
