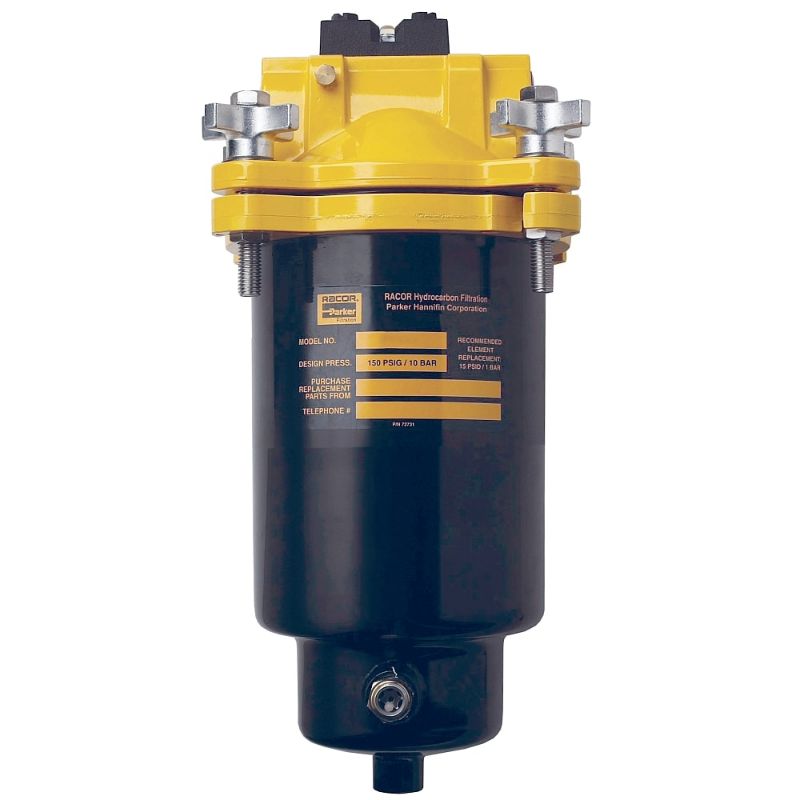

Parker FBO-10-DPL - Fuel Filtration Assemblies – Racor FBO Series

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FBO-10-DPL

$1,151.37/each

Products specifications

Attribute name	Attribute value
UOM	EA	Height	20 inch
Indicator Type	Delta P Indicator Included	Port Size	1-1/2 inch (2x)
Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor	Micron Rating	10 MICRON
Operating Temperature	-40 to 255 °F	Mounting Type	Optional Bracket Kit Part# 73084
Application	Fuel Transfer/Engine Filtration	Drain Option	Drain Valve Included
Weight	15 lb	Heat Type	Option: Part# FBO-HTR-KIT
Compatible Element	FBO SERIES REPLACEMENT ELEMENTS	Brand	Racor
Width	21.8 cm	Product Series	Cartridge FF/WS
Materials of Construction	Aluminum head, Steel Bowl	Pressure Rating	150 psi at 240°F
Additional Options	Water Sight Glass Included	For Fluid Type	Diesel/B20/Gasoline
Valve Type	None	Division	Engine Mobile Original Equipment Division
Flow Rate (lph)	Up to 95 in Diesel, 200 Gasoline	Number of Housings	One Head and Housing
Flow Rate (gpm)	Up to 25 in Diesel, 55 Gasoline	Use Case	Industrial
Pre-Installed Optional Accessories	DP Indicator, Water Sight Glass	Filter Element	Filter Element Ordered Separately
