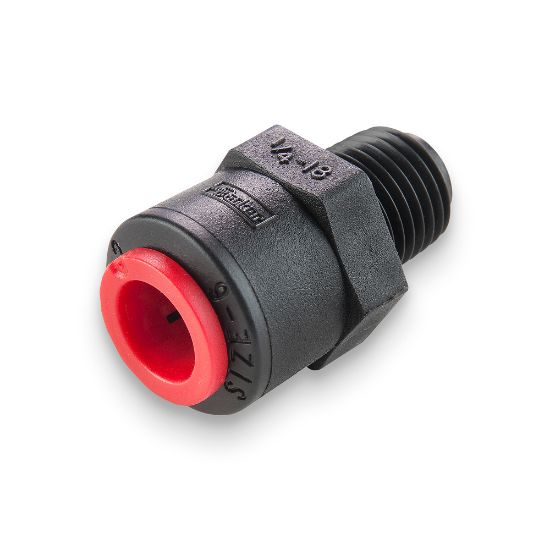

Parker FB6MCVC4-HRED-30 - TrueSeal Acetal & Kynar Check Valves - Push to Connect

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FB6MCVC4-HRED-30

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Configuration	Tube to Tube	Maximum Operating Pressure	300
Connection 1 Type	Push-to-Connect	Connection 2 Size	n/a
Shape	In-Line	Connection 1 Size	n/a
Body Material	PVDF (Kynar)	Valve Configuration	One Way
Connection 2 Type	NPTF Thread	Cracking Pressure	3.0
Application	Potable Water	For Fluid Type	Water
Maximum Operating Temperature	250	Gripping Ring Material	Stainless Steel
Minimum Operating Temperature	0	Connection Type	n/a
Division	Fluid System Connectors Division	Seal Material	Fluorocarbon
Cracking Pressure	3 Psi	Collet Material	Red
Body Material	Kynar®	Connection 2 Thread Size	1/4"
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Configuration	Tube to NPTF

Product resources

Literature and Reference Materials

Water & Beverage Products Quick Reference Guide - Water-QRG (PDF)
