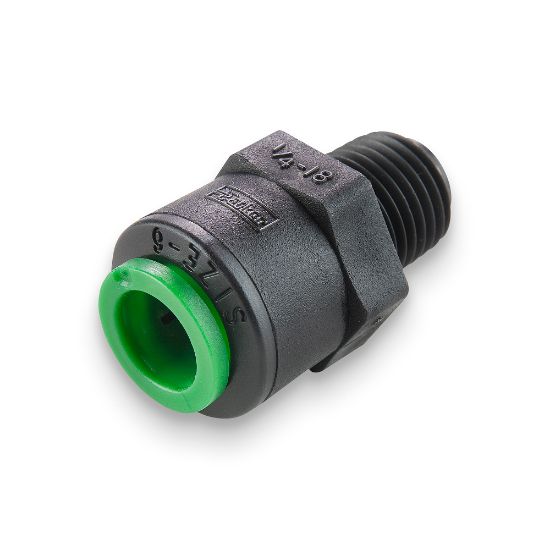

Parker FB6MCVC4-HGRN-40 - TrueSeal Acetal & Kynar Check Valves - Push to Connect

Parker's Push-to-Connect check valves are manufactured from either acetal or kynar material and allow liquid to flow in one direction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FB6MCVC4-HGRN-40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Gripping Ring Material	Stainless Steel	For Fluid Type	Water
Application	Potable Water	Maximum Operating Temperature	250
Connection Type	n/a	Division	Fluid System Connectors Division
Minimum Operating Temperature	0	Seal Material	Fluorocarbon
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Size	n/a	Maximum Operating Pressure	300
Cracking Pressure	4.0	Body Material	PVDF (Kynar)
Shape	In-Line	Connection 1 Size	n/a
Connection 2 Type	NPTF Thread	Valve Configuration	One Way
Connection 2 Thread Size	1/4"	Configuration	Tube to NPTF
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Cracking Pressure	4 Psi
Collet Material	Green	Body Material	Kynar®

Product resources

Literature and Reference Materials

Water & Beverage Products Quick Reference Guide - Water-QRG (PDF)
