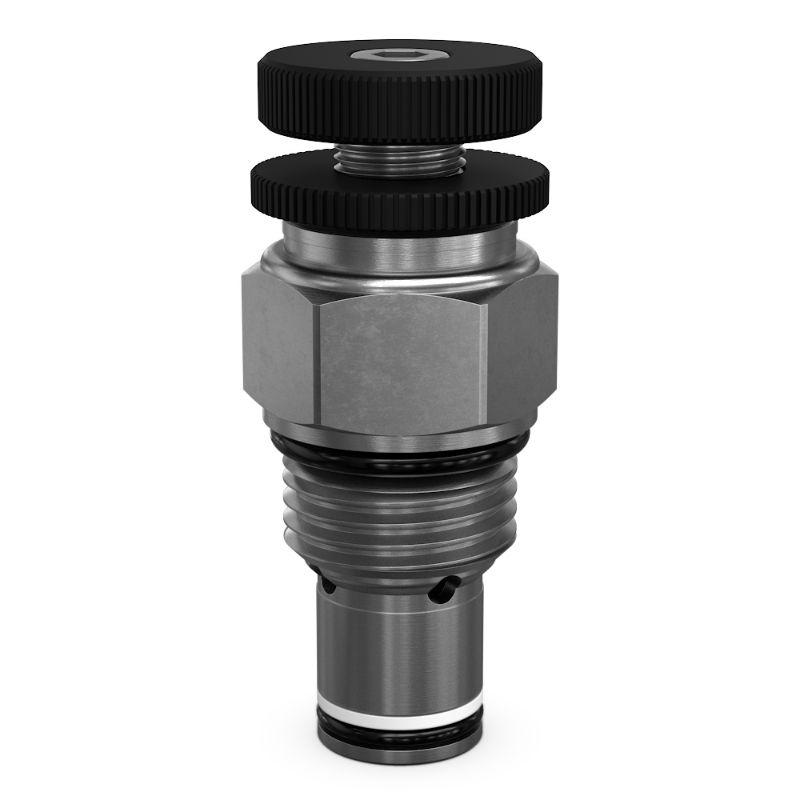

Parker FA101SV - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FA101SV

$161.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Flow Control
Configuration	Reverse Check	Cavity Size	C10-2
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Division	Hydraulic Cartridge Systems Division	Connection Type	N/A
Body Material	N/A	Standard Flow Rate Setting	N/A L/min
Maximum Flow Rate	20.6 L/min	Operation Type	Manually operated
Flow Rate Display Range	0.75-20.6 L/min	Division	Hydraulic Systems Division
Operating Temperature	-15 to +400 °F	Installation Torque	16 (Aluminum), 48 (Steel) lb-ft
Minimum Operating Temperature	-15 °F	Flow Rate	5.5 Gal/min
Flow Rate Accuracy	N/A	Connection Size	N/A
Seal Material	Fluorocarbon	Weight	0.5 lb
Actuation Type	Pressure Compensated	Maximum Inlet Pressure Rating	3000 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Adjustment Mechanism	Screw
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	210 bar	Seal Material	Fluorocarbon
Adjustment Mechanism	Screw	Configuration	Reverse Check
Maximum Flow Rate	5.5 GAL/MIN, 20.6 L/MIN	Flow Rate Display Range	0.2-5.5 GAL/MIN, 0.75-20.6 L/MIN
Standard Flow Rate Setting	N/A
