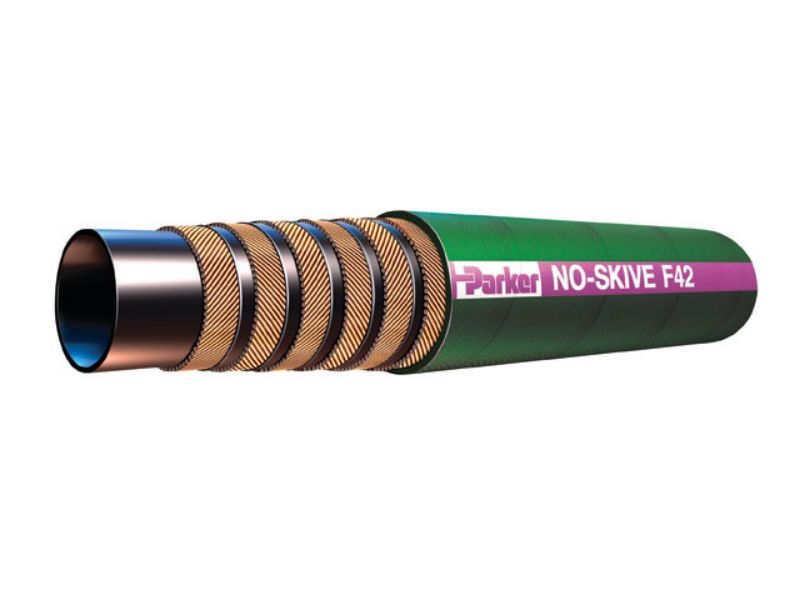

Parker F42-12 - Phosphate-Ester Hose 6000 PSI - F42 Hose

Parker's F42 hose is a phosphate-ester compatible hose that has a constant working pressure of 6000 PSI in all sizes and is specifically designed to resist aggressive airline hydraulic fluids.

Availability:	Quote Required
Partner Available:	250 In Stock

Brand Parker

Part No. F42-12

$67.87

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	80 °C
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Color	Green
Inside Diameter	3/4 inch	Nominal Hose Inside Diameter	19 mm
Media	Petroleum Hydraulic Fluids	Weight	1.53 kg/m
Application	Phosphate Ester	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire	Compatible Fitting	79 Series
Maximum Operating Pressure	42 MPa	Outside Diameter	31.9 mm
Minimum Bend Radius	10.5 inch	Hose I.D. (size)	-12
UOM	FT	Pkg Qty/UOM	140 FT
Material	Rubber	Pkg Qty	140
Inner Diameter	0.75 Inch	Working Pressure	6000 PSI (410 bar)
Mating Fitting Series	79	Working Pressure Range	> 5000 PSI (345 bar)
Hose Category	Hydraulic – Phosphate-Ester	Inch/Metric	Inch
Application	Hydraulic	Mating End Fitting Series	79
Hose Pressure Range	Medium	Parker Division	Hose Products
Series	F42	Parker Group	Fluid Connector
Inner Diameter	0.75 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
