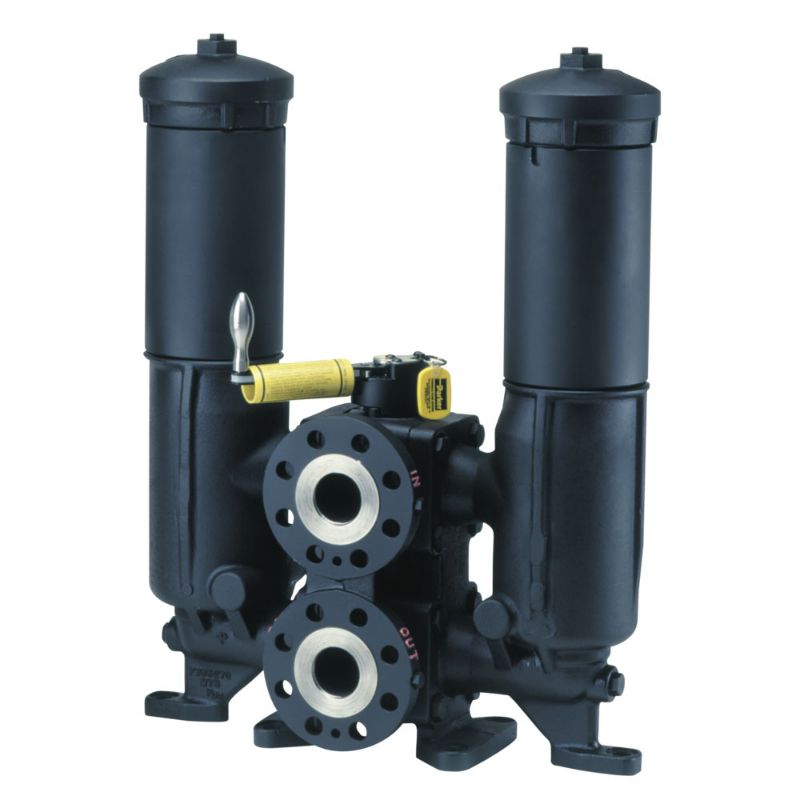

Parker F3MPD202QEM2E250Y91 - Medium Pressure Inline Duplex Filter MPD Series

The Parker MPD's innovative modular design provides solutions across a broad range of industrial applications. Allowable operating pressure of 1200 PSI/82.8 Bar and capable of flows up to 150 GPM/581 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. F3MPD202QEM2E250Y91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Hydraulic Filter	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Seal Material	Fluorocarbon	Filter Element Type	Coreless
Bypass Valve Pressure Rating	3.5 bar	Micron Rating	02Q Microglass
Product Style	Hydraulic Filter	Mounting Style	Inline
Indicator Pressure Setting	50 psi	Weight	285 lb
Port Type	2 inch SAE 4 bolt code 61 flange face	Pressure Rating	1200 psi
Housing Material	Ductile Iron and Steel	Maximum Operating Temperature	160.0 °F
Flow Rate	150.0 Gal/min	Indicator Type	visual auto reset, electrical with DIN 43650 connector
Compatible Element	935488Q	Seal Material	Fluorocarbon
Options	None	Micron Rating	02Q Microglass
Port Connection Type	2 inch SAE 4 bolt code 61 flange face	Bypass Valve Pressure Rating	50 psi (3.5 bar)
Flow Rate	150 gpm (567.8 lpm)	Indicator Type	visual auto reset, electrical with DIN 43650 connector
