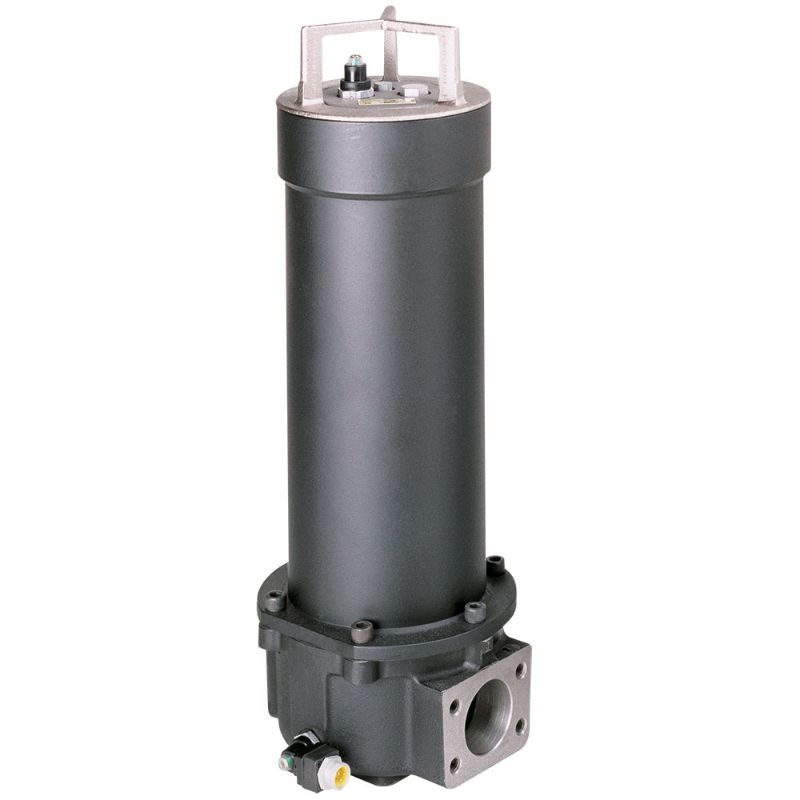

Parker F3IL82R20QEM2P25PP1 - Medium Pressure Inline Filter IL8 Series

Parker's IL8 Inline Filters combines high efficiency Quantumfiber filtration with low cost installation. Allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 425 GPM/1609 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. F3IL82R20QEM2P25PP1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	50 lb	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Options	None
Seal Material	Fluorocarbon	Filter Element Type	Cartridge
Pressure Rating	500	Product Style	Hydraulic Filter
Mounting Style	Inline	Maximum Operating Temperature	135.0 °C
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258	Port Type	SAE-24 straight thread
Bypass Valve Pressure Rating	25 psid	Indicator Type	visual auto reset, indicator/port only
Flow Rate	757.0 L/min	Housing Material	bowl - low carbon steel; cover - anodized aluminum
Compatible Element	933837Q	Micron Rating	20QE Microglass
Indicator Pressure Setting	25 psid	Seal Material	Fluorocarbon
Options	None	Bypass Valve Pressure Rating	25 psi (1.7 bar)
Port Connection Type	SAE-24 straight thread	Indicator Type	visual auto reset, indicator/port only
Flow Rate	200 gpm (757 lpm)	Micron Rating	20QE microglass
