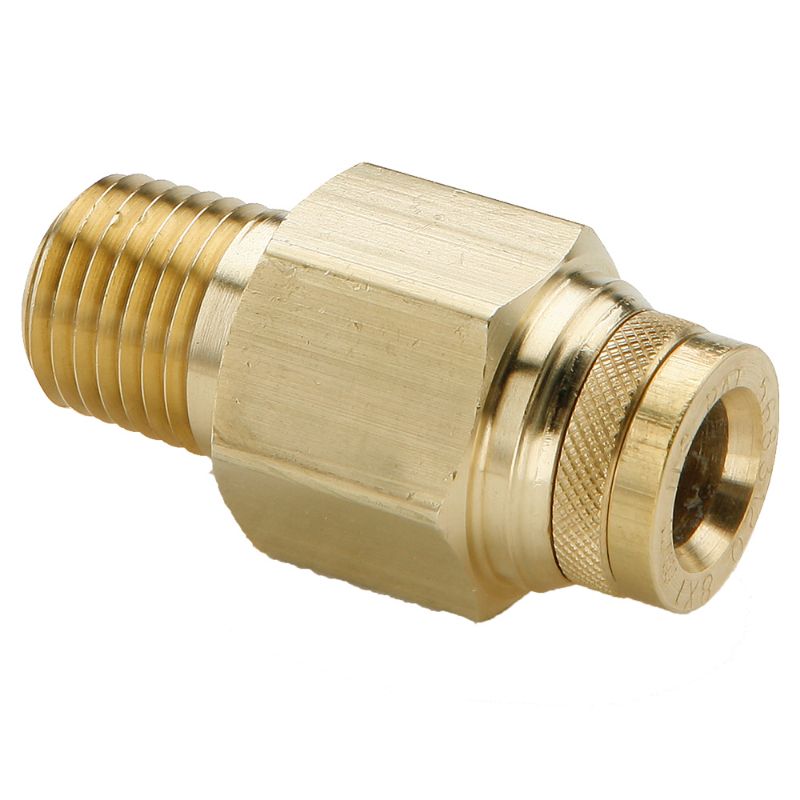

Parker F2PMTB8-1/8 - Brass Prestomatic Push to Connect DOT Fittings

Parker's Metric Prestomatic brass fittings meet SAE and DOT specifications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. F2PMTB8-1/8

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Body Material	Brass	Minimum Operating Temperature	-40 °F
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
Maximum Operating Pressure	250 psi	Connection 2 Type	Pipe
Maximum Operating Temperature	200 °F	Connection 1 Size	8 mm Tube O.D.
Connection 1 Type	Push-to-Connect	Connection 2 Size	1/8 inch
Tube Material	Stainless Steel	Connection 3 Size	N/A
Configuration	Tube to Pipe	Seal Material	Buna N (O-Ring)
Application	Air Brake Systems	Specifications Met	DIN 74324
Materials of Construction	Brass (Collet)	Shape	Connector
Shape	Connector	Connection 1 Size	8 mm
Connection 1 Type	Push-to-Connect	Product Style	Tube to Pipe
Connection 2 Size	1/8 inch	Connection 2 Type	Male Pipe Thread
Connection 3 Size	N/A	Connection 3 Type	N/A
