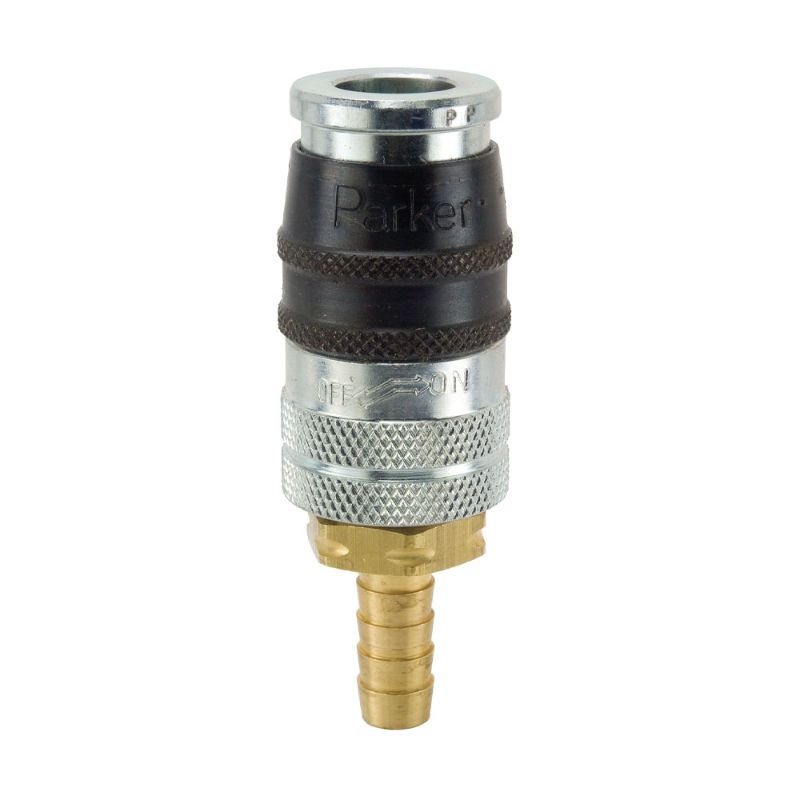

Parker EZ-251-6HB - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EZ-251-6HB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Tubular	Specifications Met	ISO 4414 controlled pressure release
Media	Compressed Air	Coupling Half	Coupler
Special Option	Exhaust - venting	Division	Quick Coupling Division
Application	Air	Minimum Operating Temperature	-40 °F
Lock Type	Locking balls	Dimensional Weight	0.062320143884892085 lb
Maximum Operating Pressure	300 psi	Body Material	Steel
Maximum Operating Temperature	250 °F	Sleeve Type	Push to Connect
Plating Type	Zinc with clear trivalent chromate on steel body	Seal Material	Nitrile
Connection Thread Size (inch)	na	Body Size (inch)	1/4
Thread Style	na	Connection Type	Hose barb
Connection Hose I.D. (inch)	3/8

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
