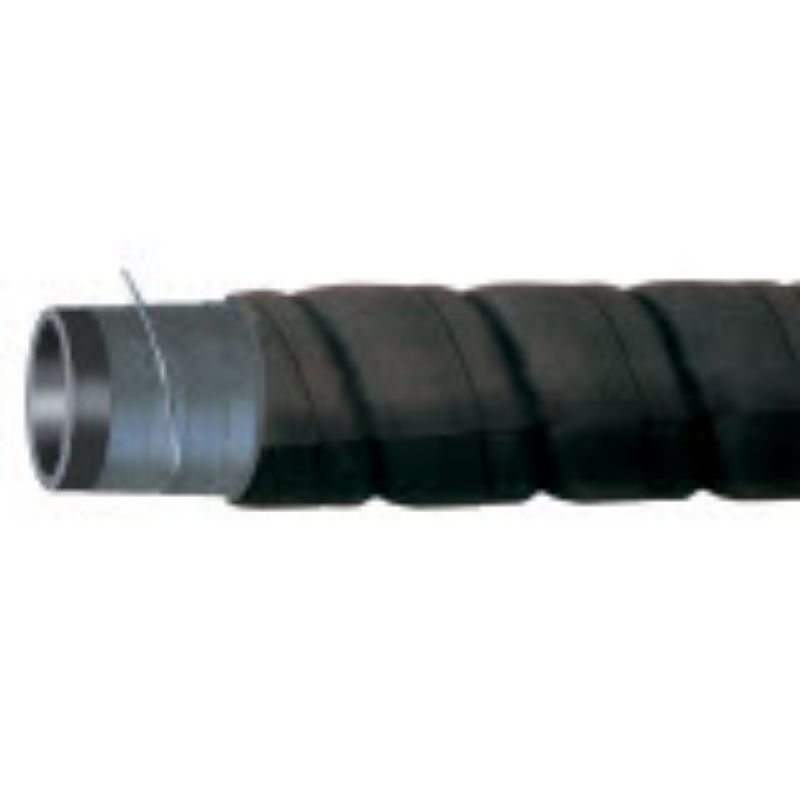

Parker EWC777-20000 - Large Diameter Custom Made Heavy Duty Material Handling Corrugated Suction Hose, Series EWC777

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EWC777-20000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cover Structure	Corrugated	Maximum Length	50
Outside Diameter	22	Minimum Operating Temperature	-40
Inside Diameter	20	Vacuum Pressure Rating	Full
Hose Reinforcement Material	6 Plies of Tire Cord with Wire Helix	Cover Color	Black
Maximum Operating Pressure	75	Hose Inner Tube Material	5/16"
Minimum Bend Radius	100	Media	Dry Abrasive Powders (Debris)
Division	Hose Products Division	Weight	48
Application	Material Handling	Cover Material	Styrene Butadiene Rubber (SBR)
Package Type	Straight Length	Maximum Operating Temperature	150
Hose I.D. (inch)	20

Product resources

Literature and Reference Materials

Industrial Hose Custom Made Hose_BUL 4850 (PDF)
