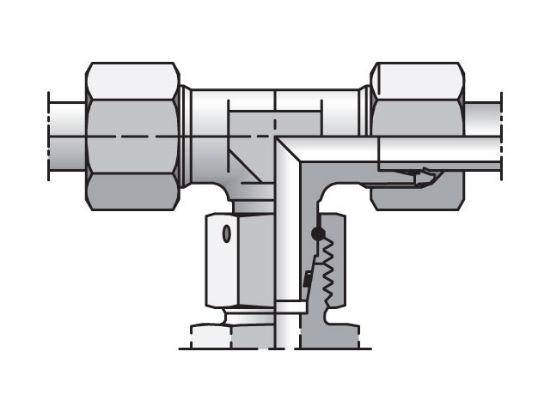

Parker ET08ZL71 - EO/EO-2 Tee, Swivel Nut Branch - ET

EO/EO-2 Tee, Swivel Nut Branch - 24° Flareless / 24° Flareless / Flareless Swivel

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ET08ZL71

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pkg Qty	3	UOM	EA
End 2	8 mm	Pressure Rating	315 bar
EO-2 Seal	Fluorocarbon	End 1	8 mm
End 3	M14 x 1.5 Metric	Material	Stainless Steel
Pressure Series	Light	Material	Stainless Steel
Parker Division	Tube Fitting	End 3	M14 x 1.5 Metric
End 2 Type	mm	End 1 Type	mm
Configuration Sub-Type	Swivel Nut Branch - 24° Flareless / 24° Flareless / Flareless Swivel	End 3 Type	Metric
Trade Name	EO/EO-2	Pressure Series	Light
Series	EO-2	EO-2 Seal	Fluorocarbon
Configuration Type	Tee	Inch/Metric	Metric
End 2	8 mm	Tube Fitting/Adapter Type	Bite Type, EO/EO-2 Flareless
Parker Group	Fluid Connector	Pressure Rating	315 bar
End 1	8 mm
