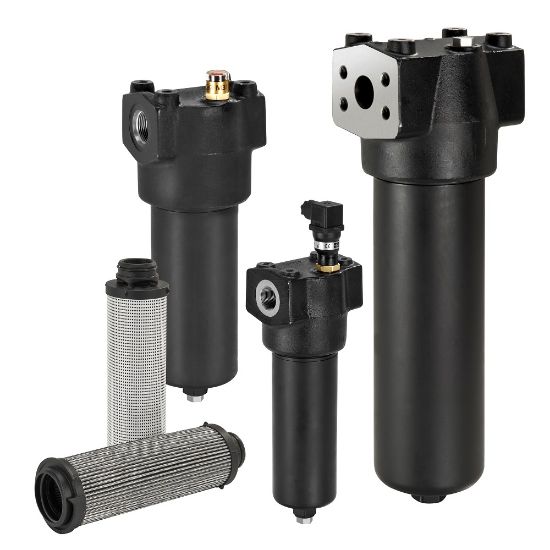

Parker EPF1105QIBT1MG081 - High Pressure Inline Hydraulic Oil Filter – iProtect® EPF Series

The Parker EPF Series is a highly compact, eco-friendly inline hydraulic oil filter that features a re-usable element core. Capable of flows up to 700 L/min (185 GPM). Maximum allowable operating pressure pressure up to 450 bar (6,500 psi).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EPF1105QIBT1MG081

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Industry	Construction	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	For Fluid Type	Hydraulic Oil
Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.	Indicator Pressure Setting	5 bar
Product Type	Hydraulic Oil Filters	Application	Wind turbines
Product Series	iProtect® EPF	Product Style	Inline Filter
Operating Pressure	450 bar	Materials of Construction	Housing: Iron/Steel
Seal Material	Nitrile	Indicator Type	Electrical NO/NC
Micron Rating	5 µm	Options	Standard, incl. Bypass
Bypass Valve Pressure Rating	7.0 bar	Flow Rate	0 to 35 l/min
Filter Element	05QI (Microglass)	Connection Type	G½
Bypass Valve (bar)	7.0	Filter Element Type	05QI (Microglass)
Flow Capacity (l/min)	0 to 35	Port Connection Type	G1/2

Product resources

Compliance, Certifications & Safety

SAFETY-EPF-iProtect-filter-series (PDF)

Literature and Reference Materials
