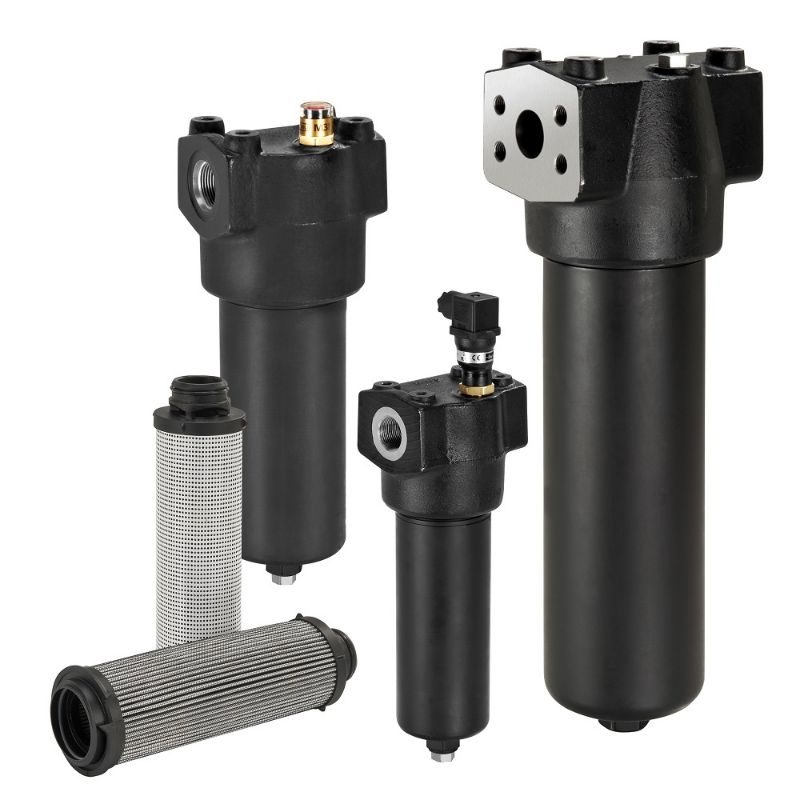

Parker EPF1102QIBM3MG081 - High Pressure Inline Hydraulic Oil Filter – iProtect® EPF Series

The Parker EPF Series is a highly compact, eco-friendly inline hydraulic oil filter that features a re-usable element core. Capable of flows up to 700 L/min (185 GPM). Maximum allowable operating pressure pressure up to 450 bar (6,500 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EPF1102QIBM3MG081

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	Technology	Hydraulics
For Fluid Type	Hydraulic Oil	Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.
Indicator Pressure Setting	5 bar	Application	Forwarders
Industry	Mining	Product Type	Hydraulic Oil Filters
Product Series	iProtect® EPF	Product Style	Inline Filter
Operating Pressure	450 bar	Materials of Construction	Housing: Iron/Steel
Seal Material	Nitrile	Indicator Type	Visual
Micron Rating	2 µm	Options	Standard, incl. Bypass
Bypass Valve Pressure Rating	7.0 bar	Flow Rate	0 to 30 l/min
Filter Element	02QI (Microglass)	Connection Type	G½
Bypass Valve (bar)	7.0	Filter Element Type	02QI (Microglass)
Flow Capacity (l/min)	0 to 30	Port Connection Type	G1/2

Product resources

Compliance, Certifications & Safety

SAFETY-EPF-iProtect-filter-series (PDF)

Literature and Reference Materials
