*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

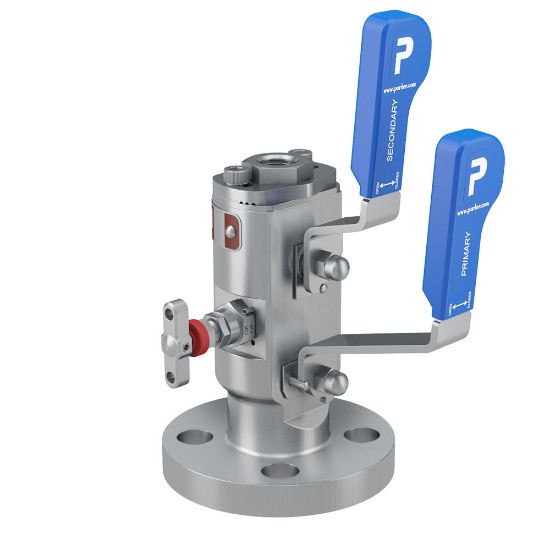

Parker EPBV100B24F1500N - Modular Valve - Pro-Bloc - EP Series

Parker's EP Series Pro-Bloc valve conforming to the EEMUA 182 standard is designed to replace conventional multiple-valve installations currently in use for interface with pressure measuring systems in process control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EPBV100B24F1500N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
ANSI Flange Class	1500	Flange Face Type	Raised Face Spiral
Division	Instrumentation Products Division	Product Style	Flange x Screw
Connection Type	NPT F	Specifications Met	API 607, EEMUA 182
Bore Diameter	25	Operating Temperature	-29 to 232°C, -20 to 450°F
For Fluid Type	Compressed Natural Gas, Fuel, Fire Resistant Fluid, Gasoline, Gylcerin, Hydrogen, Inert Gas, Ketone/Acetone, Lube Oil, Mineral Oil, Nitrogen, Ozone, Petroleum Oil, Solvent, Standard Hydraulic Fluid, Steam, Synthetic Oil, Volatile Gas, Water, Water Glycol	Application	Instrument Isolation, Inline Process Isolation
Seat Material	PTFE	Body Material	316 Stainless Steel
Connection Size	1	Product Type	Double Block & Bleed Valve
Flange Size	1 1/2	Technology	Process Control
Brand	Parker	Operating Pressure	3600 PSI, 248 Bar
Configuration	Ball-Needle-Ball	Industry	Oil & Gas, Petrochemical, Chemical, Industrial Gas
Configuration	Ball-Needle-Ball	Body Material	316 Stainless Steel
Flange Face Type	Raised Face Spiral	Connection Size	1 Inch
Bore Size	25 MM	Product Style	Flange x Screw
ANSI Flange Class	1500	Certifications	NACE
Flange Size	1 1/2 Inch	Connection Type	NPT F
