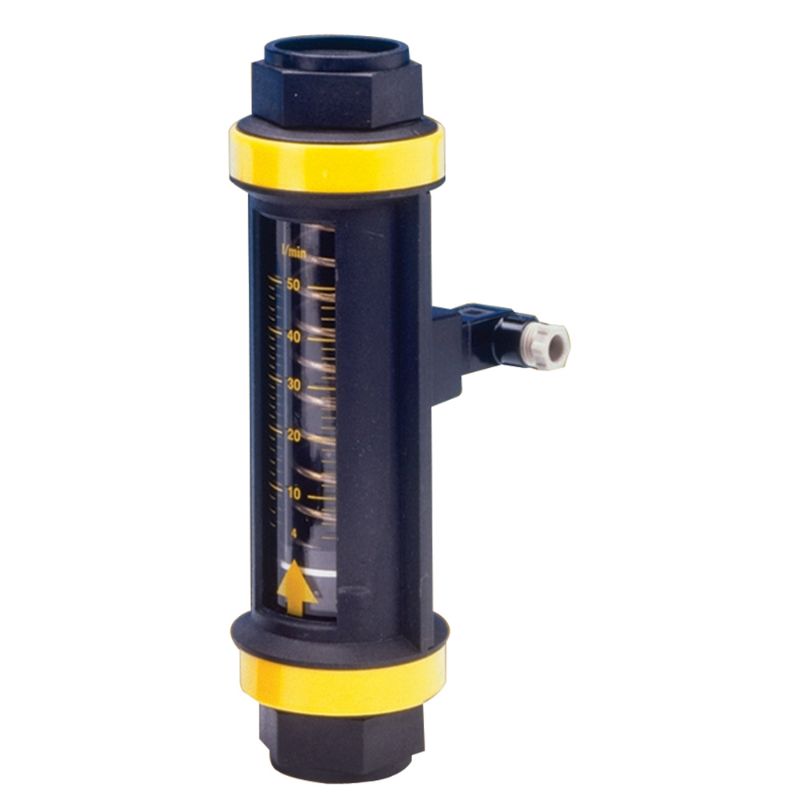

Parker EF7731113220 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EF7731113220

$375.18/each

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Fluid Temperature	+5 °C
Cycle Time	n/a	Division	Hydraulic & Industrial Process Filtration Division EMEA
Accuracy	+/- 5% FSD	For Fluid Type	Water
Ingress Protection Rating	n/a	Technology	Filtration
Height	60 mm	Diameter	60 mm
Port Size	1 inch	Body Material	Glass Filled Nylon
Communication Interface	n/a	Signal Output	n/a
Product Style	Flow Meter	Division	Hydraulic & Industrial Process Filtration Division EMEA
Product Type	Condition Monitor	Operating Temperature	5 to 80 °C
Electrical Requirements	n/a	Flow Rate	5 to 100 L/min
Length	196 mm	Operating Humidity	n/a
Operating Pressure	145 psi	Specifications Met	Pressure Directive
Port Type	BSP	Maximum Fluid Temperature	+80 °C
Seal Material	Nitrile	Sensing Method	Variable Oriface Flowmeter
Materials of Construction	Borosilicate Glass	Industry	Industrial Manufacturing Equipment
Width	60 mm	Brand	Parker
ATEX Specifications Met	n/a	Flow Rate	5 to 100 l/min
Switch Type	No Switch	For Fluid Type	Water

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
