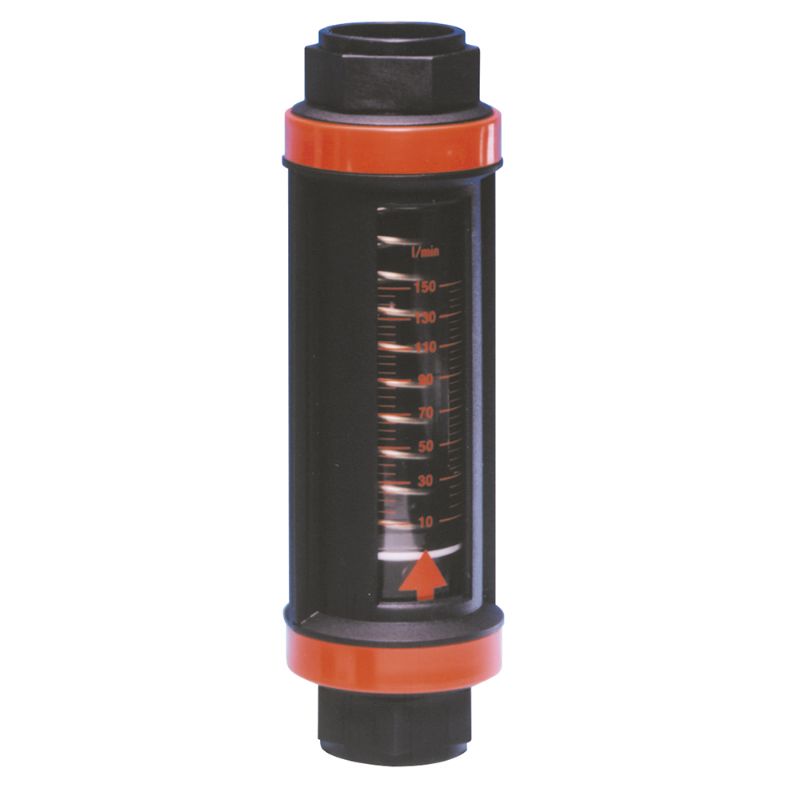

Parker EF7731112120 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EF7731112120

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Communication Interface	n/a	Technology	Filtration
Port Size	1 inch	Seal Material	Nitrile
Ingress Protection Rating	N/A	For Fluid Type	Oil
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Industrial Manufacturing Equipment	Product Style	Flow Meter
Port Type	BSP	Product Type	Condition Monitor
Operating Humidity	n/a	ATEX Specifications Met	n/a
Width	60 mm	Length	196 mm
Operating Pressure	145 psi	Specifications Met	Pressure Directive
Materials of Construction	Borosilicate Glass	Body Material	Glass Filled Nylon
Height	60 mm	Accuracy	+/- 5% FSD
Diameter	60 mm	Flow Rate	4 to 50 L/min
Cycle Time	n/a	Signal Output	n/a
Sensing Method	Variable Oriface Flowmeter	Operating Temperature	5 to 80 °C
Electrical Requirements	n/a	Maximum Fluid Temperature	+80 °C
Minimum Fluid Temperature	+5 °C	Flow Rate	4 to 50 l/min
Switch Type	No Switch	For Fluid Type	Oil

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
