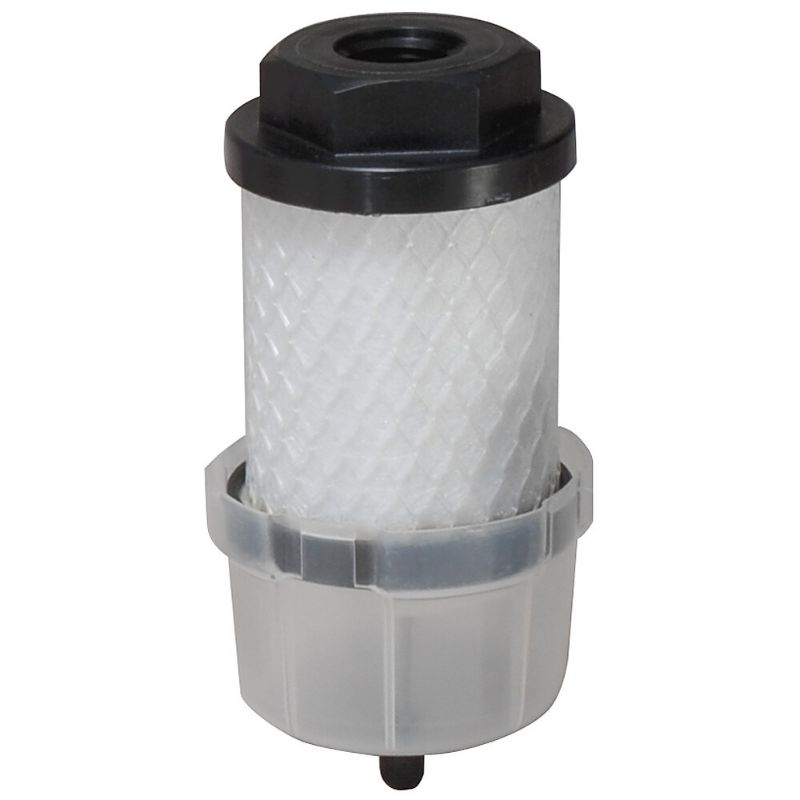

Parker ECS3A - Muffler / Reclassifiers

Oil is exhausted from valves, cylinders, and air motors into the ECS. Oil is coalesced into large drops, pulled by gravity into the sump, and drained manually or by using a 1/4" tube drain. The air flowing through the ECS filter media is also muffled.

AFP Availability:	Quote Required
Partner Available:	37 In Stock

Brand Parker

Part No. ECS3A

$169.09/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Pneumatic Division
Port Size	1/2"	Noise Level	Attenuation: 25 dBA
Operating Temperature	125° °F	Product Type	Muffler/Reclassifier
Maximum Operating Pressure	6.89 bar	Port Size (inch)	1/2

Product resources

Literature and Reference Materials

0600P Catalog_Accessories (PDF)
0700P Catalog_Airline Accessories (PDF)
MRO Pneumatic Airline Accessories Catalog (PDF)
Muffler / Reclassifier, ECS Series 1C500 (PDF)
