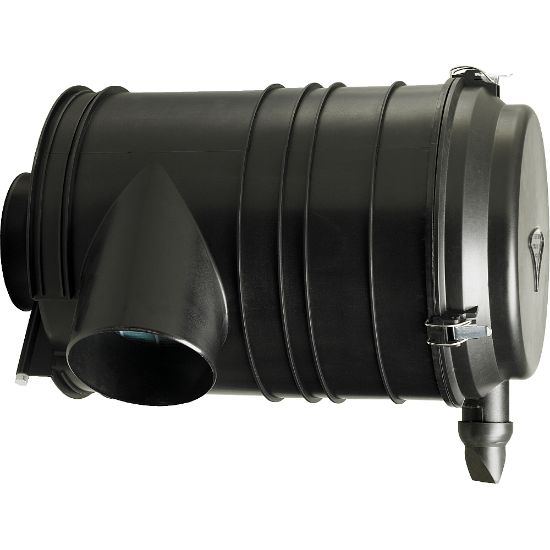

Parker ECO-III-XL13S - Cartridge Engine Air Filters – Racor ECO, AF, and EA Series

Racor Cartridge Engine Air Filters ensure delivery of clean, purified air into gasoline and diesel engines. They come available with a wide range of flow rate and mounting options, making them suitable for use in any engine or application.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ECO-III-XL13S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
For Fluid Type	Engine Air	Length	22 inch
Outlet Connection Size	6 inch	Mounting Position	Horizontal
Application	Mobile gas and diesel engines	Division	Engine Mobile Original Equipment Division
Compatible Mounting Clamp	071921010 (two required)	Outside Diameter	33 cm
Accessories Included	See literature on Product Support tab	Brand	Racor
Inlet Connection Size	6 inch	Output Power	n/a
Compatible Element	Primary: 500454001<br/>Safety: 500455001	Product Series	ECO III
Application	Heavy Dust	Flow Range	800 cfm (22.7 m3/m)
Maximum Flow Rate	800 cfm (23 m3/m)	Materials of Construction	Engineering Plastic
Pre-Cleaner	n/a	Filter Element Type	Primary Air and Safety Filters
Connection Type	Straight
