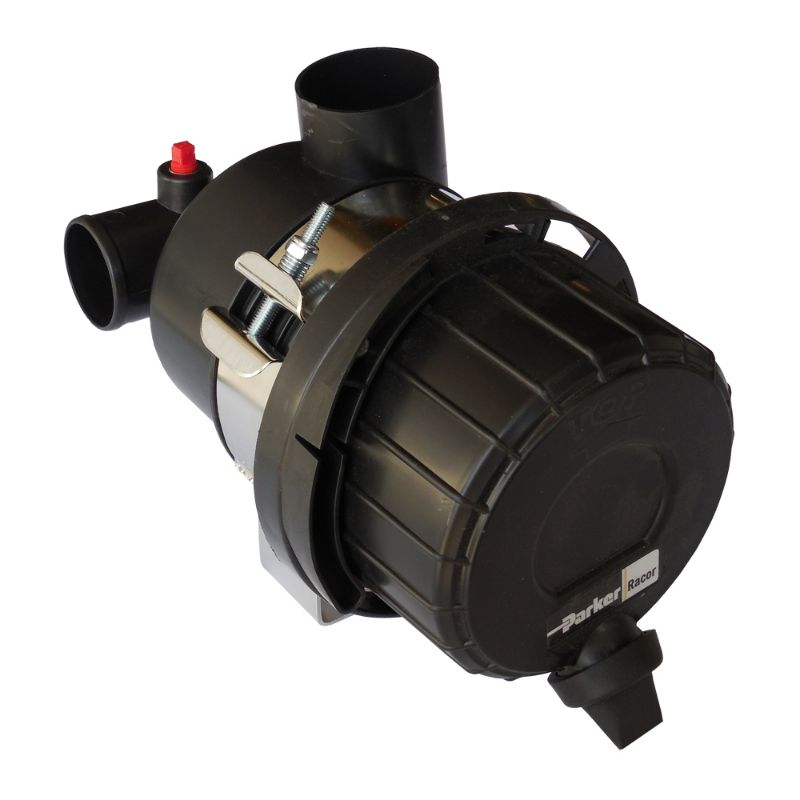

Parker EAF20209010EX - Cartridge Engine Air Filters – Racor ECO TL Series

Racor ECO TL Series Engine Air Filters ensure delivery of clean, purified air into gasoline and diesel engines. The filters feature a highly compact and rugged design, allowing for safe, trouble-free operation in heavy-duty applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EAF20209010EX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Accessories Included	Filter Service Indicators:<br/>400033015 (3 - 15 inches water vacuum)<br/>400033020 (4 - 20 inches water vacuum)<br/>400033025 (4 - 25 inches water vacuum)	Element Removal Clearance	12 inches / 350 mm inch
Product Series	Cartridge Air	Brand	Racor
Division	Engine Mobile Original Equipment Division	Materials of Construction	Engineering Plastic
Pre-Cleaner	None	Air Flow Rate	8" Water at 97 cfm
Compatible Element	EAPE68310	Compatible After Filter Element	None
For Fluid Type	Engine Air	Certificates	None
Outlet Port Connection Type	Elbow	Outlet Connection	2 inches / 51 mm
Outside Diameter	7.1 inches / 180 mm	Length	14.4 inches / 366 mm
Element Type	Primary Air Filter	Inlet Connection	2 inches / 51 mm
