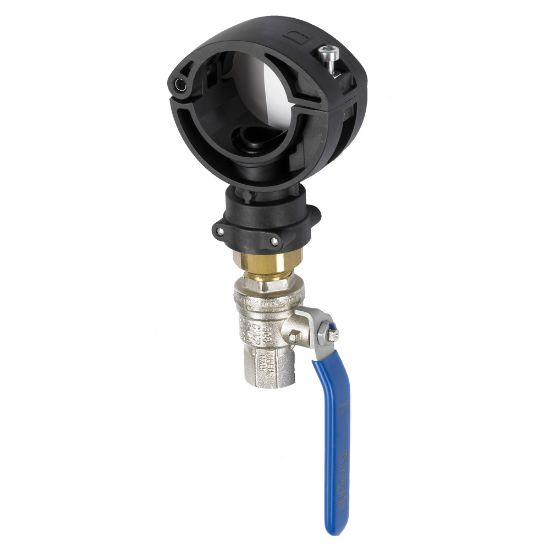

Parker EA98 50 04 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. EA98 50 04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-4 °F	For Fluid Type	Air Compressed Air, Inert Gas, Vacuum
Specifications Met	EN 755.8	Vacuum Pressure Rating	0.03 inch-Hg
Brand	Parker	Industry	General Industrial
Body Material	Technical Polymer	Maximum Operating Pressure	232 psi
Division	Low Pressure Connectors Europe Division	Technology	Pneumatics
Application	In Plant Pneumatic	Weight	0.433 kg
Configuration	Pipe to Port	Silicone Free	Yes
Product Type	Compressed Air Piping	Quantity per Box	1
Division	Fluid System Connectors Division	Connection 2 Type	BSPP
Connection 2 Size	1/2 inch	Product Style	Quick Assembly Bracket
Assembly Time	0.05 Hours	Connection 1 Type	Pipe
Assembly	Drop	Shape	Simple Reducing Pre-assembled with ball valves
Connection 1 Size	50 mm	Maximum Operating Temperature	185 °F
Body Material	Technical Polymer	Connection 2 Size	G 1/2
Connection 1 Size	2" (50 mm)	Connection 2 Type	Pressurized System Bracket (Hot Tap Bracket)
