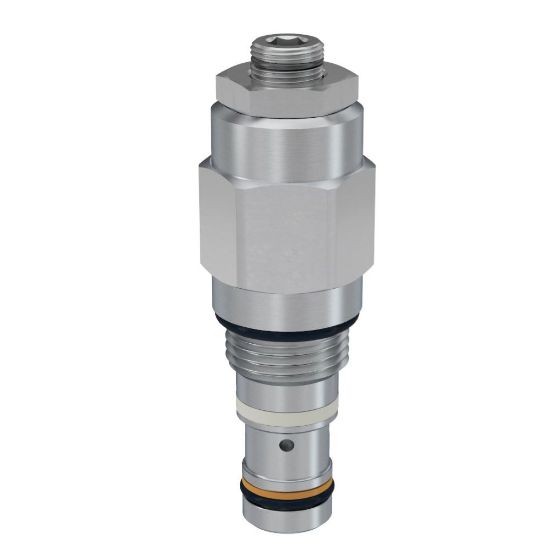

Parker E6K020ZN - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. E6K020ZN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Port Size	n/a
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Weight	0.08 kg	Division	Mobile Hydraulic Systems Division Europe
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	5000 psi
Port Thread Size	n/a	Installation Torque	30 Nm
Maximum Flow Rate	20 L/min	Function	Counterbalance Valve
Mounting Type	Threaded Cartridge Valve	Operating Temperature	-34° to +121° °C
Cavity Size	53-1	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Leak Rate	6 @ 1450 PSI (100 BAR) drops/min
Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3	Holding Pressure	3120 psi
Flow Rate	5.3 Gal/min	Actuation Type	Pilot Operated, Vented
Pilot Pressure Ratio	15:1	Pressure Control Range	1450-5000 psi
Pressure Control Sensitivity	114 per turn bar	Seal Material	Nitrile
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Threaded Cartridge Valve	Holding Pressure	3120 PSI, 215 BAR
Maximum Flow Rate	5.3 GAL/MIN, 20 L/MIN	Pilot Pressure Ratio	15:1
Pressure Control Range	1450-5075 PSI, 100-350 BAR
