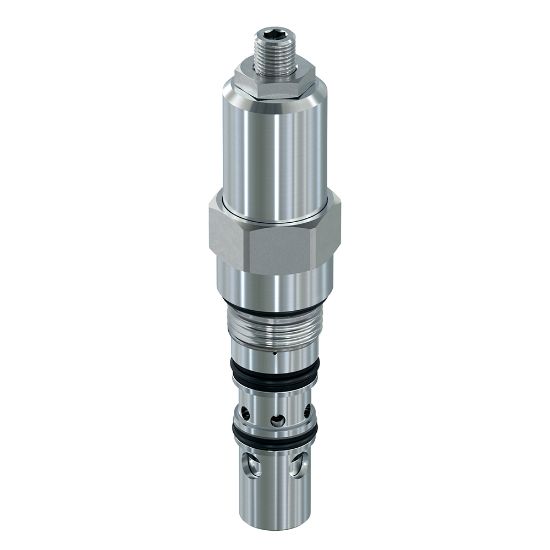

Parker E6B040ZVMK3 - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. E6B040ZVMK3

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	15.9	Maximum Flow Rate	15.9
Port Size	n/a	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000
Division	Hydraulic Valve Systems Division	Pilot Location	External
Minimum Operating Temperature	-15	Weight	0.73
Installation Torque	40	Division	Mobile Hydraulic Systems Division Europe
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	5000
Port Thread Size	n/a	Function	Counterbalance Valve
Maximum Kinematic Viscosity	Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt)	Mounting Type	Threaded Cartridge Valve
Pilot Pressure Ratio	3:1	Filter Efficiency Rating	ISO 4406:1999 Code 18/16/13
Operating Temperature	-15° to +400°	Cavity Size	68-1
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Temperature	+400	Leak Rate	6 @ 1450 PSI (100 BAR)
Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3	Holding Pressure	3120
Pressure Control Range	725-5000	Actuation Type	Pilot Operated, Vented
Pressure Control Sensitivity	1335 per turn	Seal Material	Fluorocarbon
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Threaded Cartridge Valve	Pilot Pressure Ratio	3:1
Holding Pressure	3120 PSI, 215 BAR	Maximum Flow Rate	15.9 GAL/MIN, 60 L/MIN
Pressure Control Range	725-5000 PSI, 50-350 BAR
