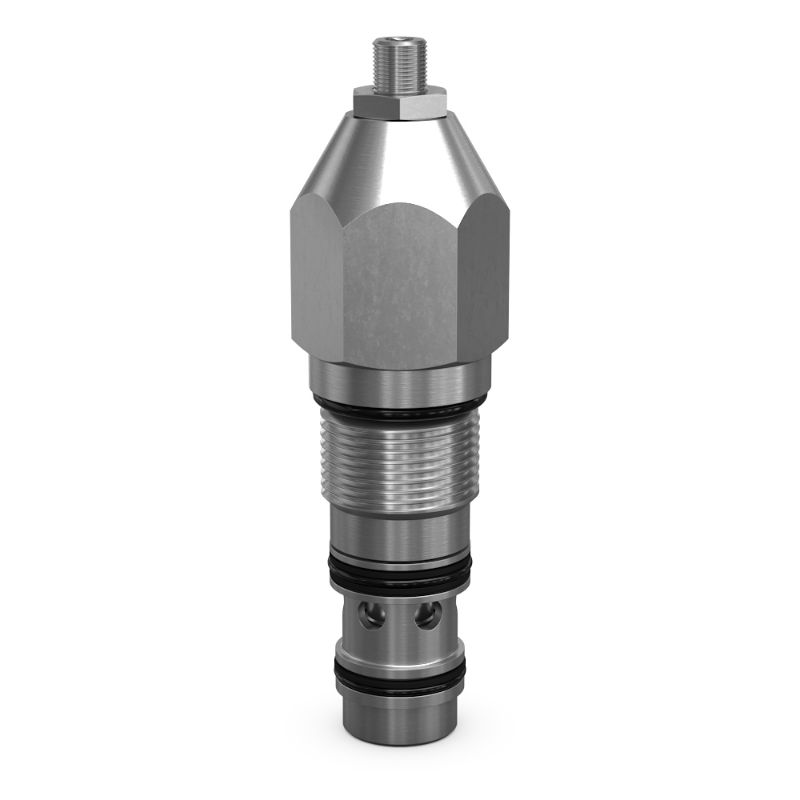

Parker E6A060ZN409 - Standard Pilot Vented Load Control Valves

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Availability:	Quote Required
Partner Available:	23 In Stock

Brand Parker

Part No. E6A060ZN409

$628.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Port Size	n/a	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Pilot Location	External
Minimum Operating Temperature	-30 °F	Maximum Operating Pressure	350 bar
Division	Mobile Hydraulic Systems Division Europe	Maximum Inlet Pressure Rating	5000 psi
Port Thread Size	n/a	Function	Counterbalance Valve
Maximum Kinematic Viscosity	Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt	Mounting Type	Threaded Cartridge Valve
Adjustment Mechanism	Screw Adjustment	Cavity Size	3C
Installation Torque	85 Nm	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Leak Rate	6 @ 1450 PSI (100 BAR) drops/min	Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3
Holding Pressure	3120 psi	Pilot Pressure Ratio	8:01
Pressure Control Range	725-5000 psi	Weight	0.53 kg
Flow Rate	48 Gal/min	Actuation Type	Pilot Operated, Vented
Maximum Flow Rate	180 L/min	Pressure Control Sensitivity	50 per turn bar
Seal Material	Nitrile	Port Size	n/a
Adjustment Mechanism	Screw	Mounting Type	Threaded Cartridge Valve
Holding Pressure	3120 PSI, 215 BAR	Pilot Pressure Ratio	8:1
Pressure Control Range	725-5000 PSI, 50-350 BAR	Maximum Flow Rate	48 GAL/MIN, 180 L/MIN
