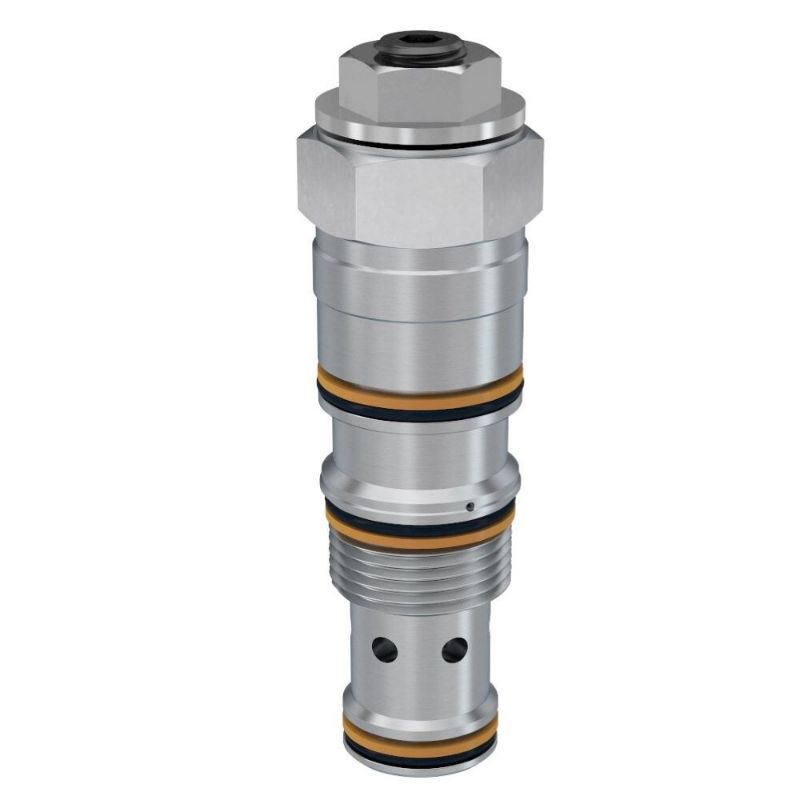

Parker E2M1ZN - Standard Pilot Assisted Load Control Valves

Name: Parker E2M1ZN - Standard Pilot Assisted Load Control Valves
SKU: E2M1ZN
Price: 123.50 USD
Availability: InStock

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

AFP Availability:

8 In Stock

North Chesterfield, VA

Partner Available:

46 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. E2M1ZN

$123.50/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	16
Weight	0.37	Actuation Type	Pilot Operated
Holding Pressure	3120	Seal Material	Nitrile
Valve Material	All parts steel. All operating parts hardened steel	Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	5000
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	5000
Adjustment Mechanism	Screw	Pressure Control Sensitivity	1508
Function	Counterbalance Valve	Pilot Pressure Ratio	4.5:1
Maximum Operating Temperature	+250	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Pressure Control Range	580-5000	Division	Hydraulic Valve Systems Division
Cavity Size	CAVT11A	Operation Type	Standard
Port Size	N/A	Leak Rate	5 @ 75% of setting
Body Material	N/A	Mounting Type	Threaded Cartridge Valve
Maximum Flow Rate	16	Installation Torque	33-37
Operating Temperature	-30 to +250	Division	Hydraulic Systems Division
Pilot Location	External	Minimum Operating Temperature	-30
Seal Material	Nitrile	Port Size	n/a
Adjustment Mechanism	Screw	Mounting Type	Threaded Cartridge Valve
Pilot Pressure Ratio	4.5:1	Maximum Flow Rate	16 GAL/MIN, 60 L/MIN
Holding Pressure	3120 PSI, 215 BAR	Pressure Control Range	580-5000 PSI, 40-350 BAR
