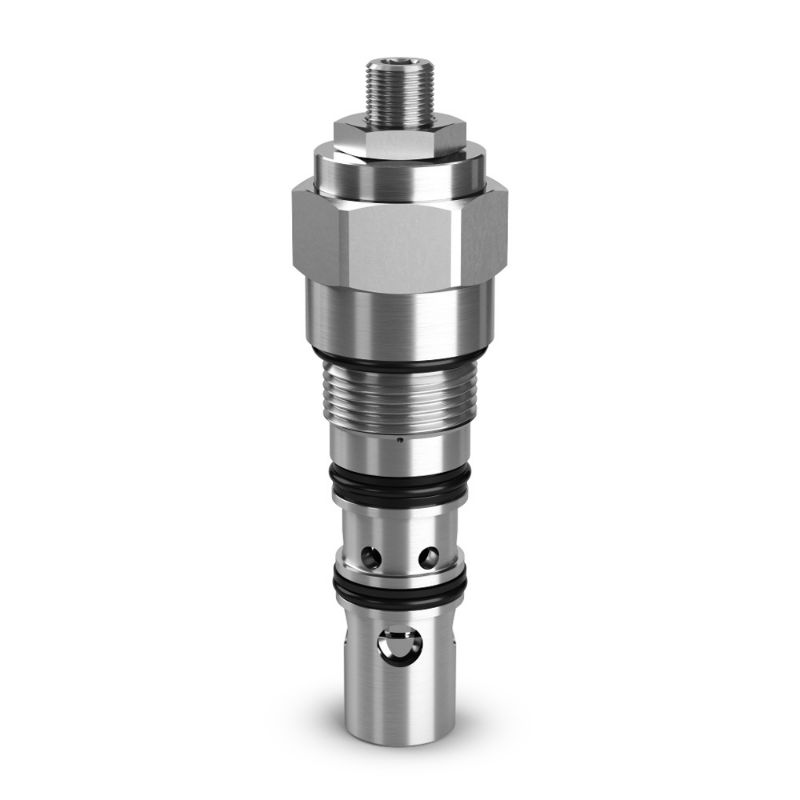

Parker E2H040ZNMK3 - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. E2H040ZNMK3

$262.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Actuation Type	Pilot Operated	Port Size	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Pilot Location	External	Minimum Operating Temperature	-30 °F
Installation Torque	54 Nm	Maximum Operating Pressure	350 bar
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	5000 psi	Port Thread Size	n/a
Weight	0.27 kg	Function	Counterbalance Valve
Maximum Kinematic Viscosity	Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt	Mounting Type	Threaded Cartridge Valve
Flow Rate	60 L/min	Maximum Flow Rate	60 L/min
Cavity Size	68-1	Maximum Operating Temperature	+250 °F
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Leak Rate	6 @ 1450 PSI (100 BAR) drops/min	Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3
Pressure Control Range	725-5000 psi	Pressure Control Sensitivity	99 per turn bar
Holding Pressure	215 bar	Pilot Pressure Ratio	1.75:1
Seal Material	Nitrile	Port Size	n/a
Adjustment Mechanism	Screw	Mounting Type	Threaded Cartridge Valve
Holding Pressure	3120 PSI, 215 BAR	Maximum Flow Rate	15.9 GAL/MIN, 60 L/MIN
Pressure Control Range	725-5000 PSI, 50-350 BAR	Pilot Pressure Ratio	1.75:1
