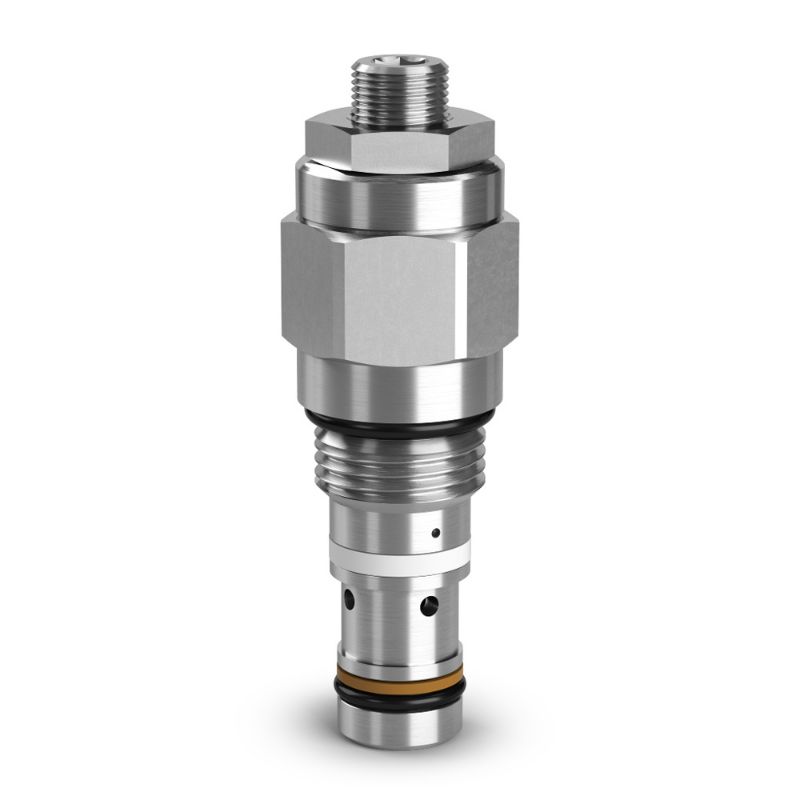

Parker E2B020ZN - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	17 In Stock

Brand Parker

Part No. E2B020ZN

$213.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Actuation Type	Pilot Operated	Port Size	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Pilot Location	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Weight	0.08 kg
Maximum Operating Pressure	420 bar	Division	Mobile Hydraulic Systems Division Europe
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	420 bar
Port Thread Size	n/a	Installation Torque	30 Nm
Flow Rate	20 L/min	Function	Counterbalance Valve
Mounting Type	Threaded Cartridge Valve	Pilot Pressure Ratio	4.5:1
Filter Efficiency Rating	ISO 4406:1999 Code 18/16/13	Operating Temperature	-34° to +121° °C
Cavity Size	53-1	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Leak Rate	6 @ 1450 PSI (100 BAR) drops/min	Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3
Holding Pressure	3120 psi	Pressure Control Range	725-6000 psi
Maximum Flow Rate	5.3 Gal/min	Pressure Control Sensitivity	1640 per turn psi
Seal Material	Nitrile	Port Size	n/a
Adjustment Mechanism	Screw	Mounting Type	Threaded Cartridge Valve
Pilot Pressure Ratio	4.5:1	Holding Pressure	3120 PSI, 215 BAR
Pressure Control Range	725-6000 PSI, 50-420 BAR	Maximum Flow Rate	5.3 GAL/MIN, 20 L/MIN
