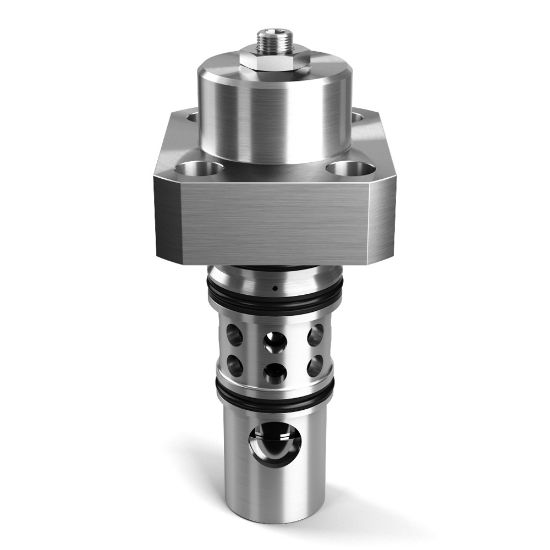

Parker E2A300ZVMK2 - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. E2A300ZVMK2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Pilot Operated	Port Size	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Pilot Location	External	Minimum Operating Temperature	-15
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	5000	Port Thread Size	n/a
Installation Torque	22	Function	Counterbalance Valve
Maximum Kinematic Viscosity	Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt)	Mounting Type	Threaded Cartridge Valve
Filter Efficiency Rating	ISO 4406:1999 Code 18/16/13	Operating Temperature	-15° to +400°
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Maximum Operating Temperature	+400	Flow Rate	92
Weight	3.17	Leak Rate	6 @ 1450 PSI (100 BAR)
Cavity Size	3K	Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3
Holding Pressure	3120	Maximum Flow Rate	92
Pilot Pressure Ratio	8:1	Pressure Control Range	725-5000
Pressure Control Sensitivity	653 per turn	Seal Material	Fluorocarbon
Port Size	n/a	Adjustment Mechanism	Screw
Mounting Type	Flanged Cartridge Valve	Holding Pressure	3120 PSI, 215 BAR
Maximum Flow Rate	92 GAL/MIN, 350 L/MIN	Pilot Pressure Ratio	8:1
Pressure Control Range	725-5000 PSI, 50-350 BAR
