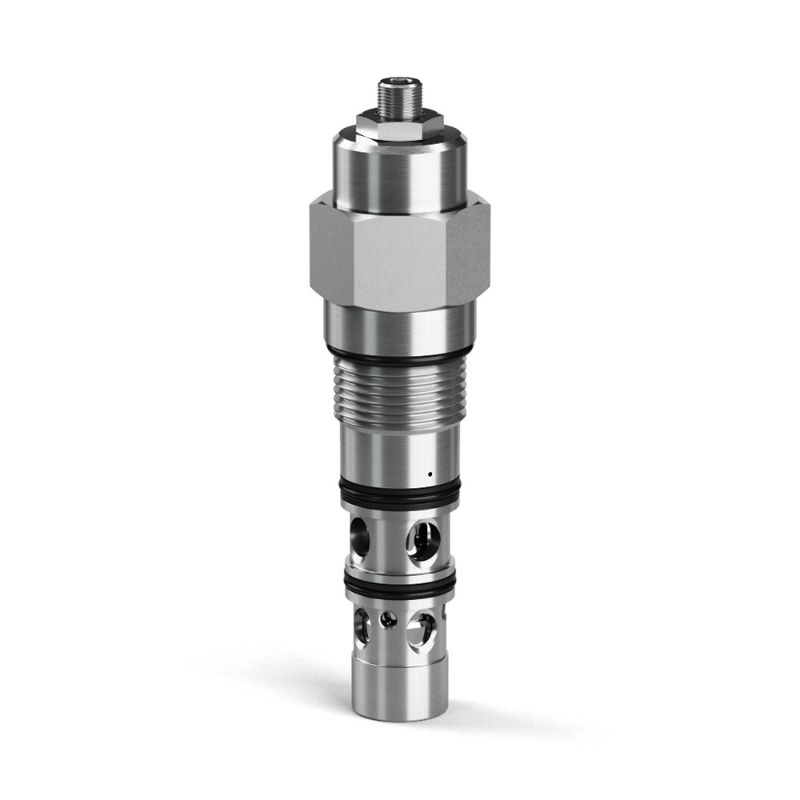

Parker E2A060ZNMK2 - Standard Pilot Assisted Load Control Valves

Parker’s piloted load control valves are designed to operate independent of downstream pressure to prevent runaway loads under dynamic conditions using a pilot signal, handling pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. E2A060ZNMK2

$290.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Actuation Type	Pilot Operated	Port Size	n/a
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Screw
Flow Rate	32 Gal/min	Maximum Flow Rate	120 L/min
Maximum Inlet Pressure Rating	5000 psi	Port Thread Size	n/a
Function	Counterbalance Valve	Mounting Type	Threaded Cartridge Valve
Filter Efficiency Rating	ISO 4406:1999 Code 18/16/13	Operating Temperature	-30° to +250° °F
Cavity Size	3C	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.54 kg	Leak Rate	6 @ 1450 PSI (100 BAR) drops/min
Flow Direction	Cylinder port 1, Valve port 2, Pilot port 3	Holding Pressure	3120 psi
Installation Torque	63 lb-ft	Pilot Pressure Ratio	8:1
Pressure Control Range	725-5000 psi	Pressure Control Sensitivity	44 per turn bar
Seal Material	Nitrile	Port Size	n/a
Adjustment Mechanism	Screw	Mounting Type	Threaded Cartridge Valve
Holding Pressure	3120 PSI, 215 BAR	Maximum Flow Rate	32 GAL/MIN, 120 L/MIN
Pilot Pressure Ratio	8:1	Pressure Control Range	725-5000 PSI, 50-350 BAR
