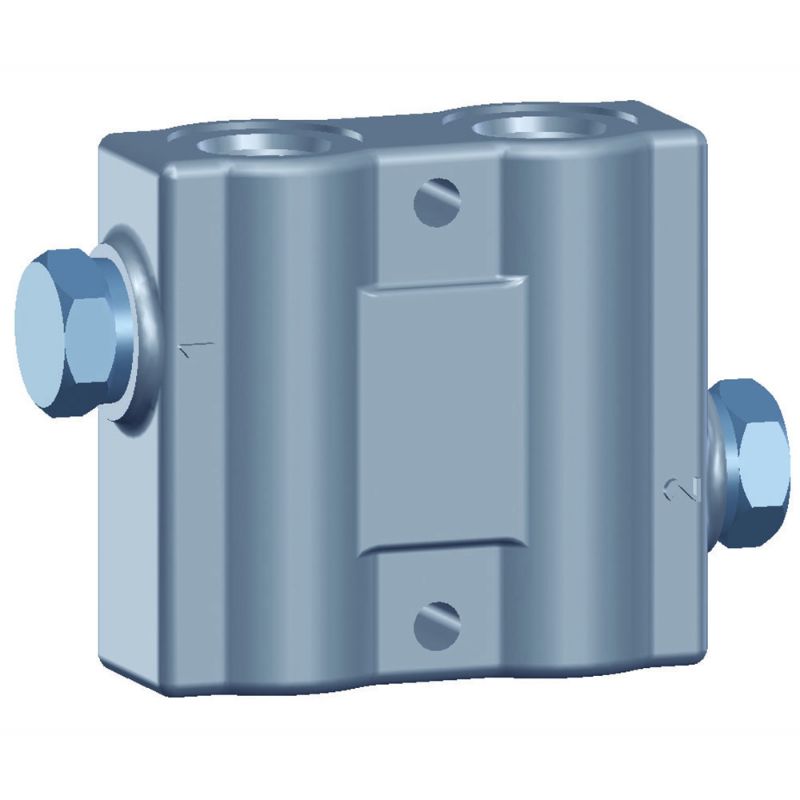

Parker DXV-10-2000 - Direct Acting Crossover Relief - DXV Series

Parker’s DXV Crossover Relief Valve is a fast, direct acting design that provides pressure overload protection for an actuator where the relieved flow is 10 GPM or less.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DXV-10-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pressure Control Range	1800-2000 psi	Maximum Operating Pressure	3000 psi
Connection Type	SAE	Division	Hydraulic Valve Systems Division
Body Material	High Strength Cast Iron	Maximum Flow Rate	10 Gal/min
Actuation Type	Hydraulic Pressure	Minimum Operating Temperature	-40 °F
Mounting Type	In-Line	Connection Size	#10
Seal Material	Nitrile	Weight	4 lb
Maximum Operating Temperature	+200 °F	For Fluid Type	Hydraulic Oil
Port Size	SAE-10	Adjustment Type	Shim Adjustable
Pressure Relief Setting (psi)	1800-2000
