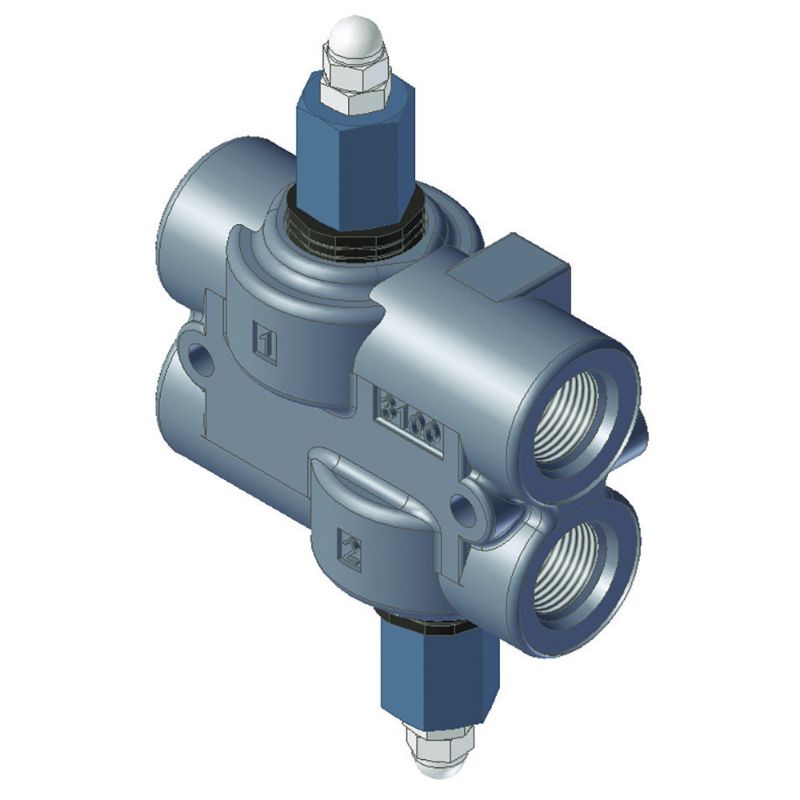

Parker DWV-10-3000 - Differential Area Crossover Relief - DWV Series

Parker’s DWV Crossover Relief Valve is a fast-acting differential area design that provides pressure overload protection for an actuator where the relieved flow is 30 GPM or less. They are installed between the control valve and actuator.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DWV-10-3000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	High Strength Cast Iron	Pressure Control Range	2000-3000 psi
Actuation Type	Hydraulic Pressure	Minimum Operating Temperature	-40 °F
Mounting Type	In-Line	Seal Material	Nitrile
Maximum Flow Rate	25 Gal/min	Maximum Operating Temperature	+200 °F
Weight	5 lb	Division	Hydraulic Valve Systems Division
For Fluid Type	Hydraulic Oil	Maximum Operating Pressure	3000 psi
Port Size	SAE-10	Adjustment Type	Shim Adjustable
Pressure Relief Setting (psi)	2000-3000
