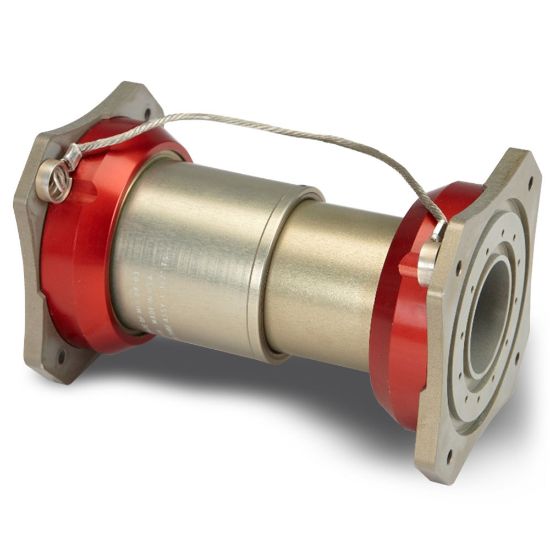

Parker DWT1000PA - Dual Wall Transfer Tube

Parker Aerospace's dual-wall transfer tube provides self-aligning capability in aerospace fuel system applications to compensate for linear and angular misalignment.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DWT1000PA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	2.1	Maximum Operating Pressure	120
Maximum Burst Pressure	360	Maximum Fluid Temperature	160
Body Material	Aluminum Alloy	Division	Stratoflex Products Division
Minimum Fluid Temperature	-65	Application	Commercial and military aircraft
Flow Diameter	1.5	Axial Movement	+/- 0.53 to +/- 0.92 inches or as designed
For Fluid Type	Fuel JP-5, Fuel JP-8	Radial Alignment	+/- 0.29 to +/- 0.36 inches fully compressed to as designed
Inlet Connection Size	1.5	Maximum Proof Pressure	240
Minimum Burst Pressure	-27.3	Minimum Proof Pressure	-18.2
Minimum Operating Pressure	-9.1
