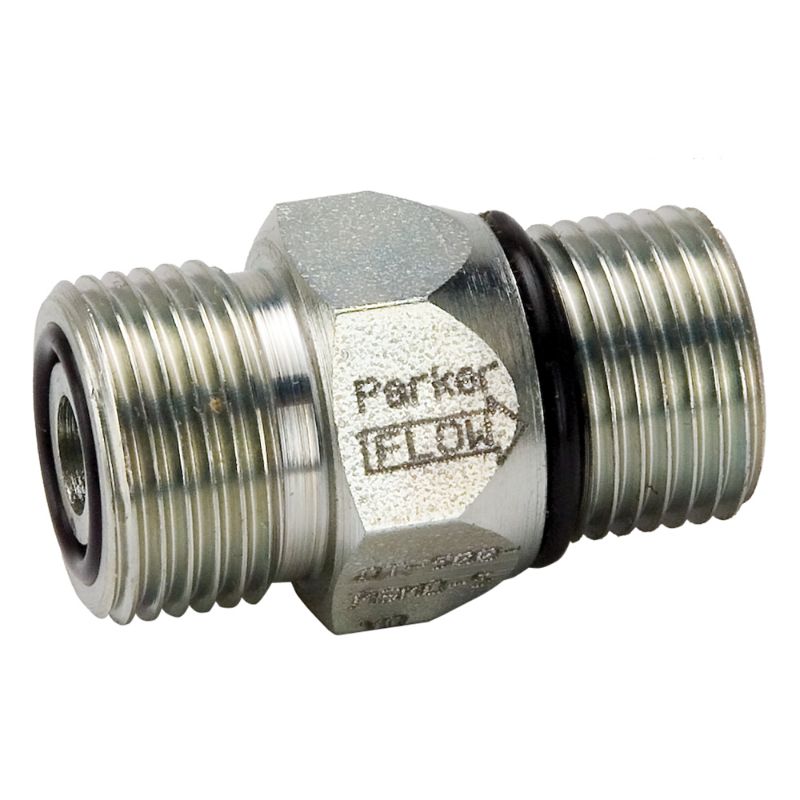

Parker DT-750-MSMO-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	18 In Stock

Brand Parker

Part No. DT-750-MSMO-5

$87.58

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Body Material	Steel	Maximum Operating Pressure	5000 psi
Body Size	3/4 inch	Configuration	n/a
Mounting Type	Threaded	Actuation Type	Mechanical
Dimensional Weight	0.05341726618705036 lb	Maximum Flow Rate	n/a
Flow Direction	n/a	Seat Type	Metal Seal
Seal Material	Metal & Elastomeric	Connection Type	Male Seal-Lok ORFS to Male ORB
Connection Size	1- 1/6 - 12 UN	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Outlet Port Size (inch)	1 1/16 - 12 UN
Inlet Port Connection Type	Male Seal-Lok	Outlet Port Connection Type	Male SAE O-ring Straight Thread
Inlet Port Size (inch)	1 3/16 - 12 UN
