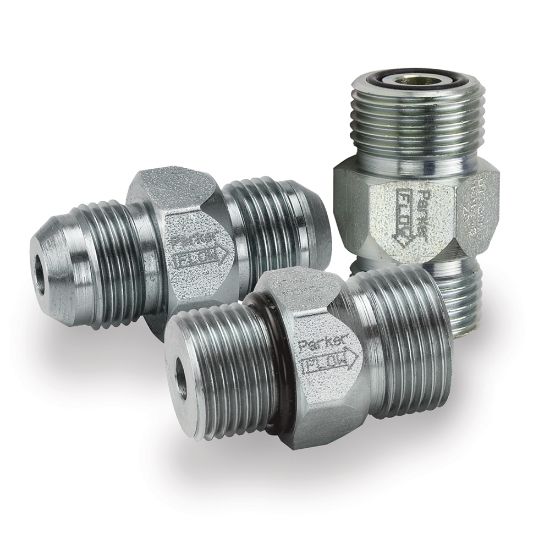

Parker DT-500-FSMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DT-500-FSMS-5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Body Material	Steel
Maximum Operating Pressure	5000 psi	Configuration	n/a
Mounting Type	Threaded	Actuation Type	Mechanical
Maximum Flow Rate	n/a	Flow Direction	n/a
Body Size	1/2 inch	Seat Type	Metal Seal
Seal Material	Metal & Elastomeric	Connection Size	13/16 - 16 UN
Connection Type	Female Seal-Lok inlet Male Seal-Lok outlet	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Outlet Port Size (inch)	5000
Outlet Port Connection Type	Male Seal-Lok	Inlet Port Size (inch)	13/16 - 16 UN
Inlet Port Connection Type	Female Seal-Lok
