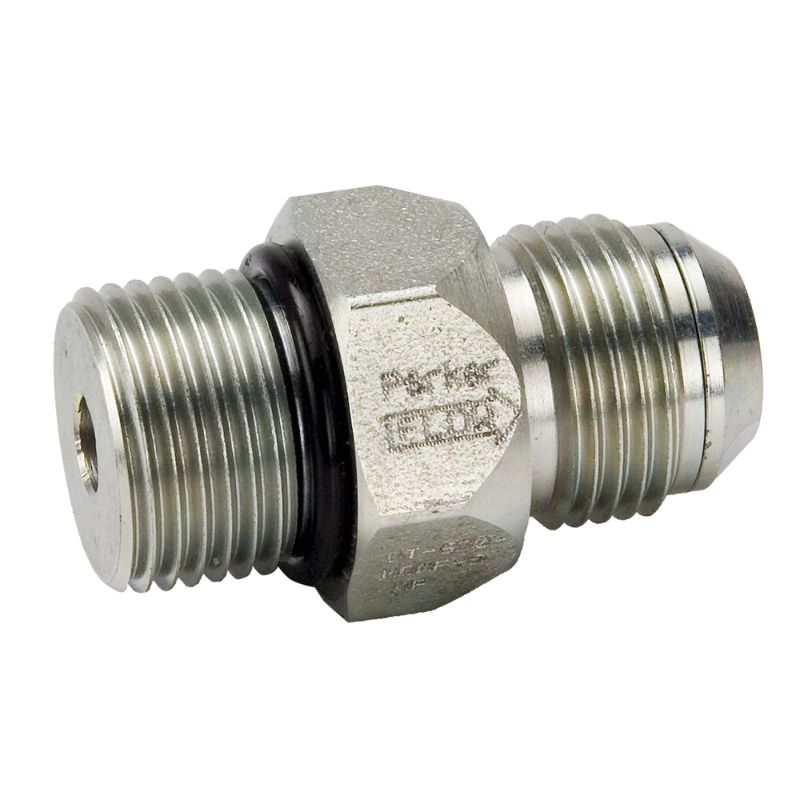

Parker DT-1250-MOMF-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. DT-1250-MOMF-5

$222.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male ORB to Male Flare JIC
Configuration	N/A	Division	Quick Coupling Division
Dimensional Weight	0.22945143884892086 lb	Maximum Operating Temperature	250 °F
Mounting Type	Threaded	Maximum Flow Rate	N/A
Minimum Operating Temperature	-40 °F	Body Material	Steel
Seat Type	Metal seal	Seal Material	Metal & Elastomeric
Body Size	1 1/4 inch	Actuation Type	Mechanical
Connection Size	1- 11/16 - 12 UN	Flow Direction	N/A
Maximum Operating Pressure	2500 psi	Inlet Port Size (inch)	1 5/8 - 12 UN
Cracking Pressure (psi)	5	Outlet Port Size (inch)	1 5/8 - 12 UN
Maximum Working Pressure (psi)	2500	Inlet Port Connection Type	Male SAE O-ring Straight Thread
Outlet Port Connection Type	Male JIC 37 degree
