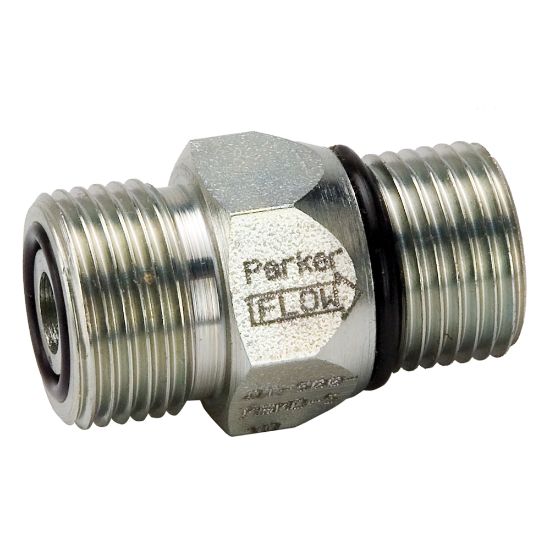

Parker DT-1000-MSMO-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DT-1000-MSMO-5

$122.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Body Material	Steel	Maximum Operating Pressure	5000 psi
Configuration	n/a	Mounting Type	Threaded
Actuation Type	Mechanical	Maximum Flow Rate	n/a
Flow Direction	n/a	Dimensional Weight	0.12582258992805753 lb
Body Size	1 inch	Seat Type	Metal Seal
Seal Material	Metal & Elastomeric	Connection Size	1- 5/16 - 12 UN
Connection Type	Male Seal-Lok ORFS to Male ORB	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Outlet Port Size (inch)	1 5/16 - 12 UN
Inlet Port Size (inch)	1 7/16 - 12 UN	Inlet Port Connection Type	Male Seal-Lok
Outlet Port Connection Type	Male SAE O-ring Straight Thread
