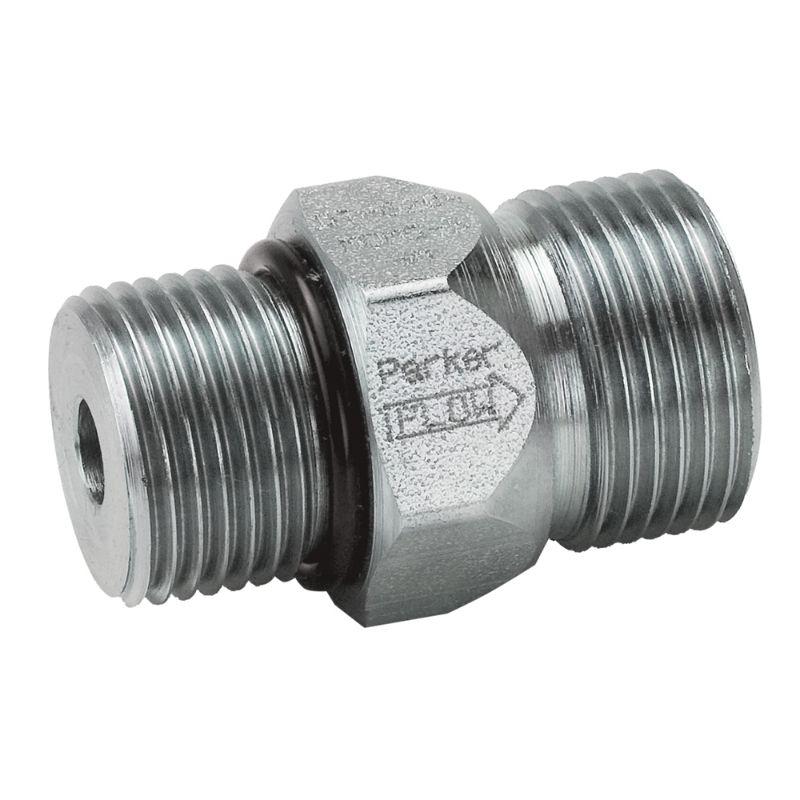

Parker DT-1000-MOMS-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. DT-1000-MOMS-5

$116.06/each

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Threaded
Maximum Flow Rate	N/A	Body Material	Steel
Seat Type	Metal seal	Minimum Operating Temperature	-40 °F
Actuation Type	Mechanical	Body Size	1 inch
Connection Size	1- 5/16 - 12 UN	Maximum Operating Pressure	5000 psi
Seal Material	Metal & Elastomeric	Flow Direction	N/A
Division	Quick Coupling Division	Configuration	N/A
Dimensional Weight	0.12464028776978417 lb	Connection Type	Male ORB to Male Seal-Lok ORFS
Maximum Operating Temperature	250 °F	Maximum Working Pressure (psi)	5000
Cracking Pressure (psi)	5	Inlet Port Size (inch)	1 5/16 - 12 UN
Outlet Port Size (inch)	1 7/16 - 12 UN	Inlet Port Connection Type	Male SAE O-ring Straight Thread
Outlet Port Connection Type	Male Seal-Lok
