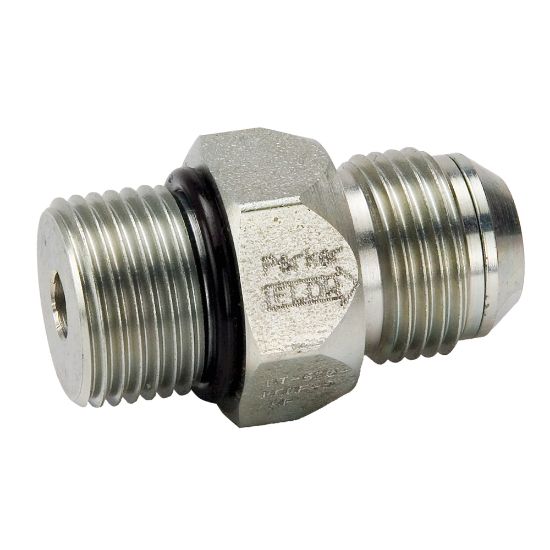

Parker DT-1000-MOMF-5 - Compact, Hydraulic In Line Check Valves - DT Series

Name: Parker DT-1000-MOMF-5 - Compact, Hydraulic In Line Check Valves - DT Series
SKU: DT-1000-MOMF-5
Price: 118.07 USD
Availability: InStock

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:

4 In Stock

West Knoxville, TN	2
East Knoxville, TN	2

Partner Available:

13 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. DT-1000-MOMF-5

$118.07/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seat Type	Metal seal
Connection Size	1- 5/16 - 12 UN	Seal Material	Metal & Elastomeric
Actuation Type	Mechanical	Body Size	1 inch
Flow Direction	N/A	Maximum Operating Pressure	3000 psi
Dimensional Weight	0.12464028776978417 lb	Configuration	N/A
Connection Type	Male ORB to Male Flare JIC	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Mounting Type	Threaded
Body Material	Steel	Maximum Flow Rate	N/A
Minimum Operating Temperature	-40 °F	Maximum Working Pressure (psi)	3000
Cracking Pressure (psi)	5	Inlet Port Size (inch)	1 5/16 - 12 UN
Outlet Port Size (inch)	1 5/16 - 12 UN	Inlet Port Connection Type	Male SAE O-ring Straight Thread
Outlet Port Connection Type	Male JIC 37 degree

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
