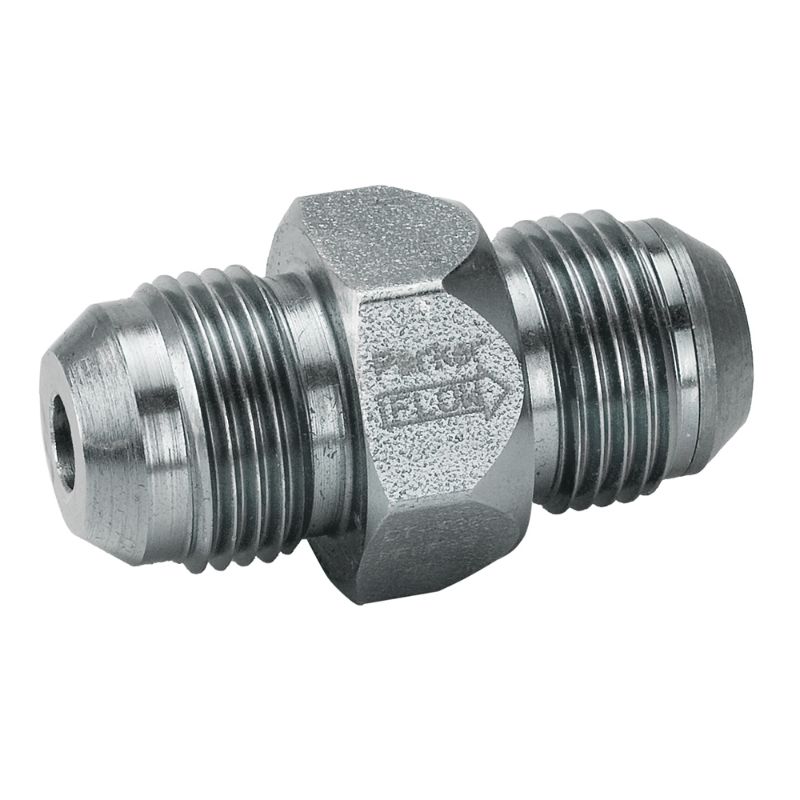

Parker DT-1000-MFMF-65 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DT-1000-MFMF-65

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.12464028776978417 lb
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Maximum Operating Pressure	3000 psi	Maximum Operating Temperature	250 °F
Body Material	Steel	Configuration	n/a
Mounting Type	Threaded	Actuation Type	Mechanical
Maximum Flow Rate	n/a	Flow Direction	n/a
Body Size	1 inch	Seat Type	Metal Seal
Seal Material	Metal	Connection Type	Male Flare JIC to Male Flare JIC
Connection Size	1- 5/16 - 12 UN	Maximum Working Pressure (psi)	3000
Cracking Pressure (psi)	65	Inlet Port Size (inch)	1 5/16 - 12 UN
Outlet Port Size (inch)	1 5/16 - 12 UN	Inlet Port Connection Type	Male JIC 37 degree
Outlet Port Connection Type	Male JIC 37 degree
