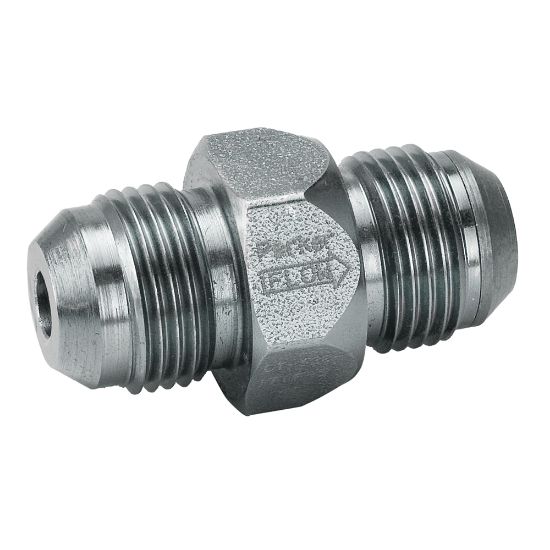

Parker DT-1000-MFMF-5 - Compact, Hydraulic In Line Check Valves - DT Series

Parker's in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DT-1000-MFMF-5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Dimensional Weight	0.12464028776978417 lb	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	250 °F	Body Material	Steel
Configuration	n/a	Mounting Type	Threaded
Actuation Type	Mechanical	Maximum Flow Rate	n/a
Flow Direction	n/a	Body Size	1 inch
Seat Type	Metal Seal	Seal Material	Metal
Connection Type	Male Flare JIC to Male Flare JIC	Connection Size	1- 5/16 - 12 UN
Maximum Working Pressure (psi)	3000	Cracking Pressure (psi)	5
Inlet Port Size (inch)	1 5/16 - 12 UN	Outlet Port Size (inch)	1 5/16 - 12 UN
Inlet Port Connection Type	Male JIC 37 degree	Outlet Port Connection Type	Male JIC 37 degree
