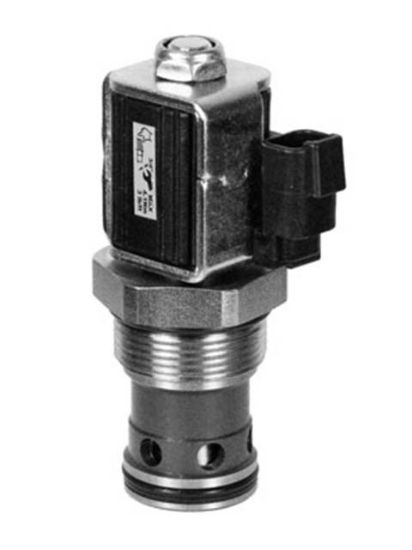

Parker DSL201NN - DSL201 Solenoid Valve

Poppet Type - 2-Way Solenoid Valve for Size 20, 2-way Cavity

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL201NN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Pkg Qty	1	Rated Flow	260 LPM (70 GPM)
Valve Body	B20-2	Seals	Nitrile
UOM	EA	Leakage	5 drops/min. (.33 cc/min.) @75% of crack pressure
Max Pressure	250 Bar (3600 PSI)	Override Type	None
Screen	None	Common Cavity	Size 20, 2-way
Pkg Qty/UOM	1 EA	Operating Temperature	-40C to +93.3C (-40F to +200F)
Series	DSL201	Valve Type	Solenoid Valve
Valve Style	Normally Open - Metered Reverse Flow	Parker Group	Hydraulic
Port	None - Cartridge Only	Leakage	5 drops/min. (.33 cc/min.) @75% of crack pressure
Common Cavity Type	Size 20, 2-way	Max Pressure	250 Bar (3600 PSI)
Rated Flow	260 LPM (70 GPM)	Override Type	None
Valve Type Detail	Poppet Type - 2-Way	Parker Division	Hydraulic Cartridge Systems
Screen	None	Operating Temperature	-40C to +93.3C (-40F to +200F)
Valve Body	B20-2	Seals	Nitrile

Product resources

Solenoid Valves (PDF)
