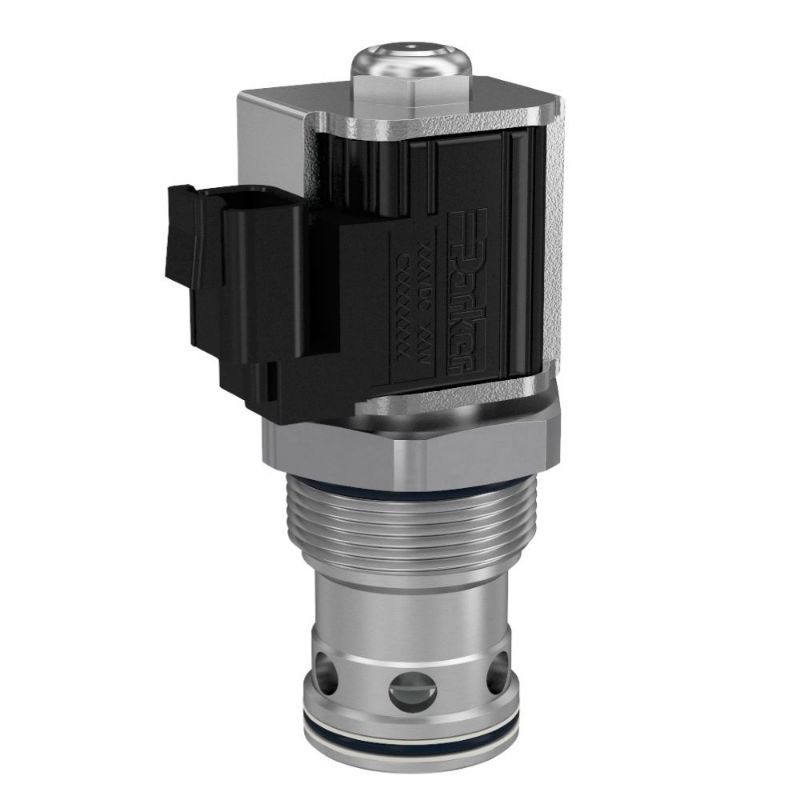

Parker DSL201N - 2 Way Poppet Type Solenoid Valve

Name: Parker DSL201N - 2 Way Poppet Type Solenoid Valve
SKU: DSL201N
Price: 224.06 USD
Availability: LimitedAvailability

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:

1 Limited Stock

Richmond, VA

Partner Available:

5 In Stock

Brand Parker

Part No. DSL201N

$224.06

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.34 kg
Function	2-Way	Minimum Operating Temperature	-34 °C
Override Functionality	n/a	Maximum Flow Rate	260 L/min
Maximum Operating Pressure	250 bar	Operation Type	Solenoid Operated
Cavity Size	C20-2	Maximum Operating Temperature	+250 °F
Configuration	Normally Open	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	7-10 Nm
Free Reverse Flow	No	Adjustment Mechanism	N/A
Coil Type	5/8" Super Coil	Maximum Inlet Pressure Rating	3600 psi
Flow Rate	70 Gal/min	Response Time	300 ms
Installation Torque	339-373 Nm	Seal Material	Nitrile
Configuration	Normally Open	Actuation Type	Electrical
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Flow Rate	70 GAL/MIN, 260 L/MIN
