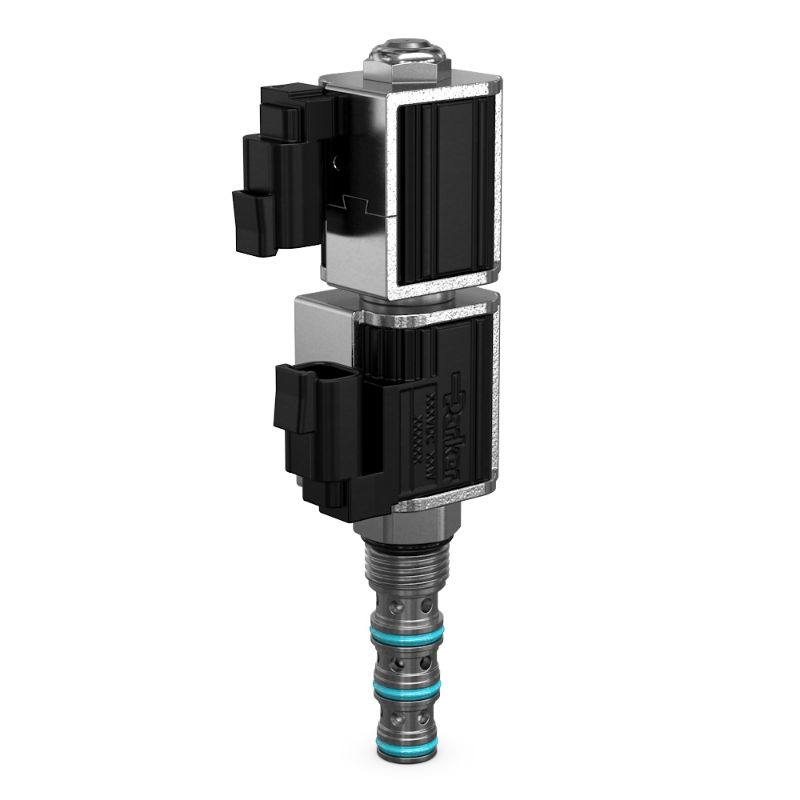

Parker DSL105C1MN - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL105C1MN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.64
Flow Rate	7	Cavity Size	C10-4
Function	4-Way	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-30 to +250	Maximum Operating Temperature	+250
Configuration	Closed Center	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C)	Coil Nut Tightening Torque	5-7
Coil Type	5/8" Super Coil	Maximum Flow Rate	7
Maximum Operating Pressure	3600	Maximum Inlet Pressure Rating	3600
Leak Rate	160 @ 3600 PSI (250 BAR)	Installation Torque	37-41
Response Time	40-150	Override Functionality	Push/Pull
Maximum Tank Pressure	N/A	Actuation Type	Electrical, Manual
Configuration	Closed Center	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
Seal Type	Nitrile	Flow Rate	7 GAL/MIN, 26 L/MIN
