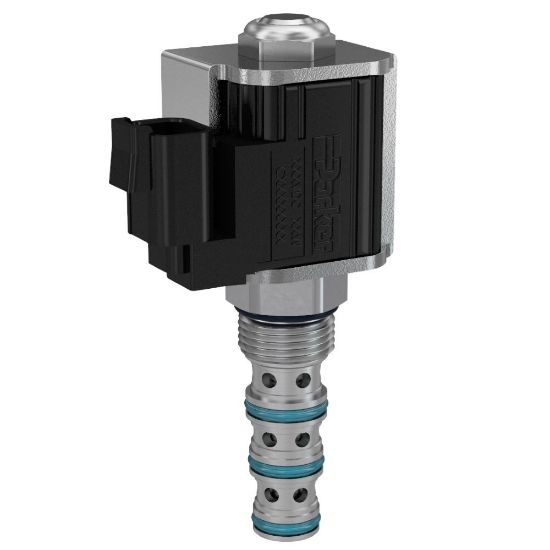

Parker DSL104MP - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL104MP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Configuration	n/a	Weight	0.44 lb
Maximum Operating Pressure	250 bar	Seal Material	D-Ring (Standard)
Cavity Size	C10-4	Function	4-Way
Actuation Type	Electrical, Manual	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Operating Temperature	-35 to +200 °F	Maximum Operating Temperature	+93 °C
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	5-7 lb-ft
Coil Type	5/8" Super Coil	Flow Direction	2-1, 3-4 De-Energized, All ports blocked Energized
Response Time	30-60 ms	Flow Rate	7 Gal/min
Maximum Flow Rate	27 L/min	Override Functionality	Pull and Release
Maximum Inlet Pressure Rating	3600 psi	Installation Torque	50-56 Nm
Leak Rate	230 @ 3600 PSI (250 BAR) cm3/min	Seal Material	D-Ring (Standard)
Actuation Type	Electrical, Manual	Configuration	N/A
Flow Direction	2-1, 3-4 De-Energized, All ports blocked Energized	Flow Rate	7 GAL/MIN, 27 L/MIN
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
