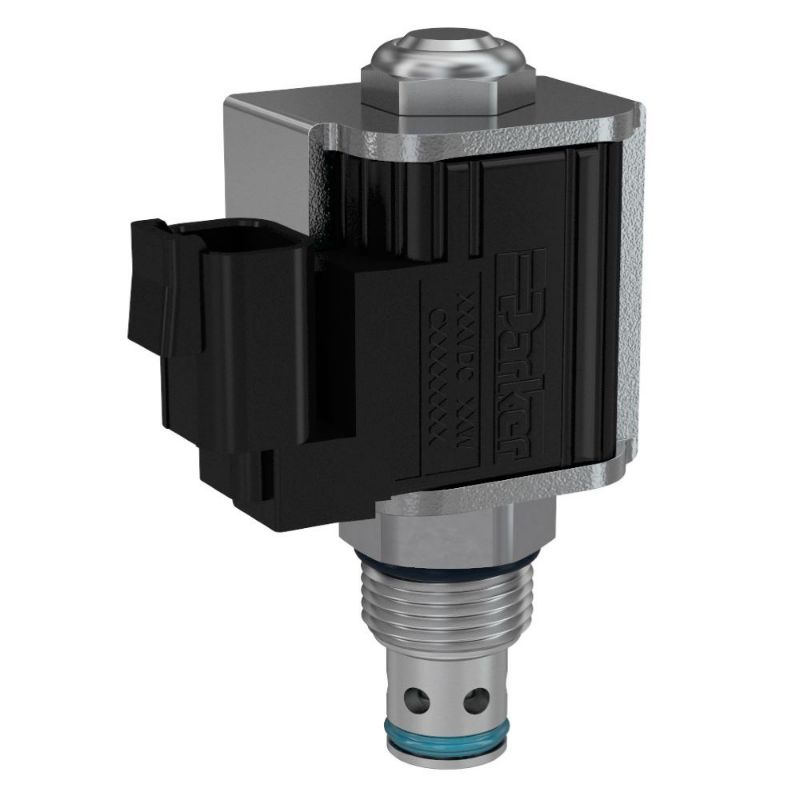

Parker DSL102CN - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL102CN

$47.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Function	2-Way
Weight	0.4 lb	Override Functionality	n/a
Maximum Flow Rate	8 Gal/min	Flow Rate	8 Gal/min
Cavity Size	C10-2	Operation Type	Solenoid Operated
Maximum Operating Temperature	+121 °C	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	30 ms
Coil Nut Tightening Torque	7-10 Nm	Coil Type	5/8" Super Coil
Maximum Operating Pressure	3600 psi	Maximum Inlet Pressure Rating	250 bar
Leak Rate	120 CC/min @ 3600 PSI (250 BAR) cm3/min	Installation Torque	37-41 lb-ft
Seal Material	Nitrile	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Actuation Type	Electrical
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
