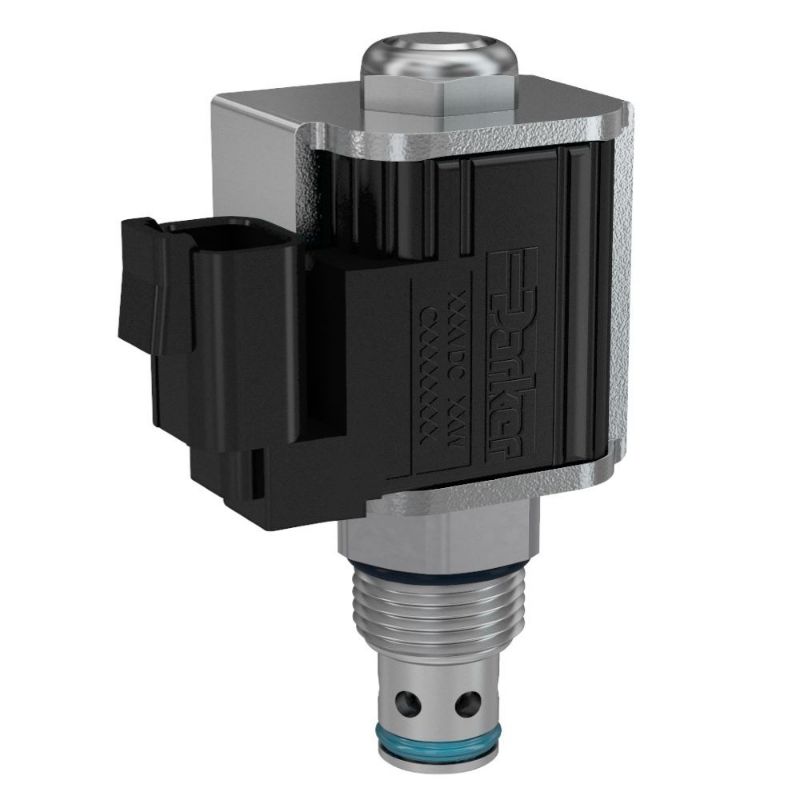

Parker DSL101NRE - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL101NRE

$101.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	+93 °C
Override Functionality	Push Type w/Extended Rod	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	5/8" Super Coil	Cavity Size	C10-2
Leak Rate	5 drops/min	Operation Type	Solenoid operated, Manually operated
Body Material	N/A	Input Voltage	85% of rated voltage at 72°F (20°C) min
Mounting Type	Screw in cartridge valve	Maximum Flow Rate	15 Gal/min
Installation Torque	37-41 lb-ft	Operating Temperature	-35 to +200 °F
Division	Hydraulic Systems Division	Minimum Operating Temperature	-35 °F
Wire Mesh Screen Included	No	Flow Rate	60 L/min
Coil Nut Tightening Torque	5-7 lb-ft	Weight	0.41 lb
Response Time	35 ms	Maximum Operating Pressure	3600 psi
Actuation Type	Electrical, Manual	Seal Material	D-Ring (Standard)
Free Reverse Flow	Yes	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	Side to Nose (2-1)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	250 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Adjustment Mechanism	N/A	Configuration	Normally Open
Function	2-way	Configuration	Normally Open
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Flow Rate	15 GAL/MIN, 60 L/MIN
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
