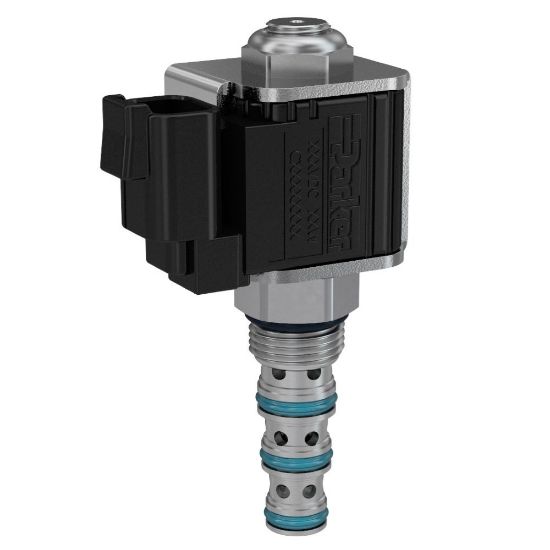

Parker DSL084BTN - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL084BTN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Configuration	n/a
Flow Rate	4 Gal/min	Cavity Size	C08-4
Function	4-Way	Weight	0.29 lb
Maximum Operating Temperature	+250 °F	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Override Functionality	Push and Twist
Coil Nut Tightening Torque	7-10 Nm	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Maximum Flow Rate	4 Gal/min	Maximum Operating Pressure	3600 psi
Installation Torque	23-27 lb-ft	Maximum Inlet Pressure Rating	3600 psi
Leak Rate	160 @ 3600 PSI (250 BAR) cm3/min	Seal Material	Nitrile
Actuation Type	Electrical, Manual	Flow Rate	4 GAL/MIN, 15 L/MIN
Configuration	N/A	Flow Direction	3-2, 4-1 De-Energized, 2-1, 3-4 Energized
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
